Link-Belt® 10410601 LNKFC3U263NK5

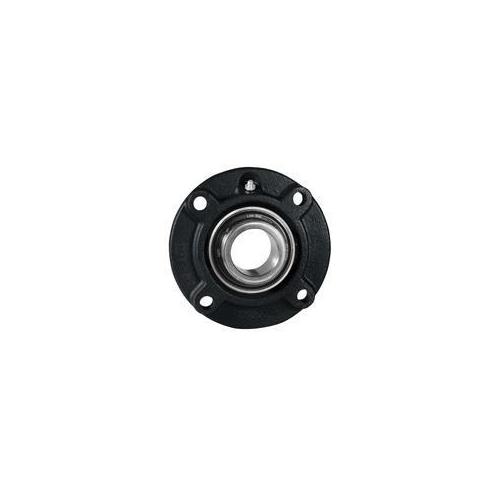

Link-Belt® 10410601 200 Standard-Duty Flange Block Ball Bearing, 3-15/16 in Dia Bore, 9-3/8 in Dia Bolt Circle, 4-Bolt Round Flange Mount, 10-7/8 in OAL/Dia
- Manufacturer: Regal Rexnord
- Brand Name: Link-Belt®
- Part Number: LNKFC3U263NK5
- MPN: 10410601
- UPC: 793699139341
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/PK
-
Price:
200 series standard duty ball bearing units provide a versatility of application arrangements for carrying shafts with radial or combination radial and thrust loads. They are designed for general purpose industrial machinery, conveyors, chain, belt drives, fans, blowers, power transmission and many other applications.
Link-Belt® Flange Block Ball Bearing, Standard-Duty, Series: 200, 3-15/16 in Bore, 9-3/8 in Diameter Bolt Circle, 4-Bolt Round Flange Mounting, 10-7/8 in Overall Length/Diameter, 4-1/4 in Overall Depth, Set Screw Locking Device, Alloy Steel Bearing, 27560 lb Dynamic/20900 lb Static Load, 2500 rpm Maximum, 225 deg F, Powder Coated
| Bearing Material | : | Alloy Steel |
| Bolt Circle Diameter | : | 9-3/8 in |
| Bore Diameter | : | 3-15/16 in |
| Finish | : | Powder Coated |
| Flange Mounting Type | : | 4-Bolt Round |
| Load Capacity | : | 27560 lb Dynamic/20900 lb Static |
| Locking Device | : | Set Screw |
| Maximum Speed | : | 2500 rpm |
| Overall Depth | : | 4-1/4 in |
| Overall Length/Diameter | : | 10-7/8 in |
| Series | : | 200 |
| Temperature Rating | : | 225 deg F |
| Type | : | Standard-Duty |
- Precision alignable ball bearings of deep groove construction for high capacity and high precision applications
- Compact, 1-piece housing provides excellent mounting support
- Non-relubricatable bearing
- Integral bearing seals
- Wide inner ring for increased shaft stability
- Cast iron housing
- Single lip contact seal
- No grease, preservative only
