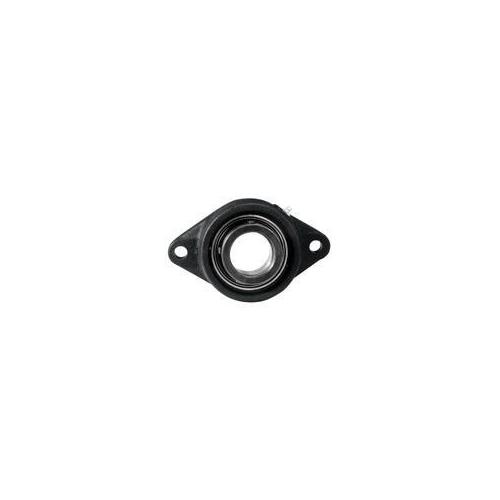

Link-Belt® 10409184 LNKFX3W231E
Link-Belt® 10409184 200 Intermediate Duty Flange Block Ball Bearing, 1-15/16 in Dia Bore, 6-3/16 in L Bolt Center-to-Center, 2-Bolt Flange Mount, 4-9/16 in OAL/Dia
- Manufacturer: Regal Rexnord
- Brand Name: Link-Belt®
- Part Number: LNKFX3W231E
- Alt Part Number: FX3W231E
- MPN: 10409184
- UPC: 793699305135
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
200 series intermediate duty ball bearing units provide a versatility of application arrangements for carrying shafts with radial or combination radial and thrust loads. They are designed for general purpose industrial machinery, conveyors, chain, belt drives, fans, blowers, power transmission and many other applications.
Link-Belt® Flange Block Ball Bearing, Intermediate Duty, Series: 200, 1-15/16 in Bore, 6-3/16 in Bolt Center-to-Center Length, 2-Bolt Flange Mounting, 4-9/16 in Overall Length/Diameter, 2-13/32 in Overall Depth, 7-7/16 in Overall Height, Eccentric Cam Collar Locking Device, Alloy Steel Bearing, 7920 lb Dynamic/5220 lb Static Load, 3600 rpm Maximum, 225 deg F, Powder Coated
| Bearing Material | : | Alloy Steel |
| Bolt Center-to-Center Length | : | 6-3/16 in |
| Bore Diameter | : | 1-15/16 in |
| Finish | : | Powder Coated |
| Flange Mounting Type | : | 2-Bolt |
| Load Capacity | : | 7920 lb Dynamic/5220 lb Static |
| Locking Device | : | Eccentric Cam Collar |
| Maximum Speed | : | 3600 rpm |
| Overall Depth | : | 2-13/32 in |
| Overall Height | : | 7-7/16 in |
| Overall Length/Diameter | : | 4-9/16 in |
| Series | : | 200 |
| Temperature Rating | : | 225 deg F |
| Type | : | Intermediate Duty |
- Precision alignable ball bearings of deep groove construction for high capacity and high precision applications
- Compact, 1-piece housing provides excellent mounting support
- Non-relubricatable bearing
- Integral bearing seals
- Narrow inner ring
- Cast iron housing
- Single lip contact seal
