Link-Belt® 10408258 LNKT3U210N
  1. pin-int

Link-Belt® 10408258 LNKT3U210N

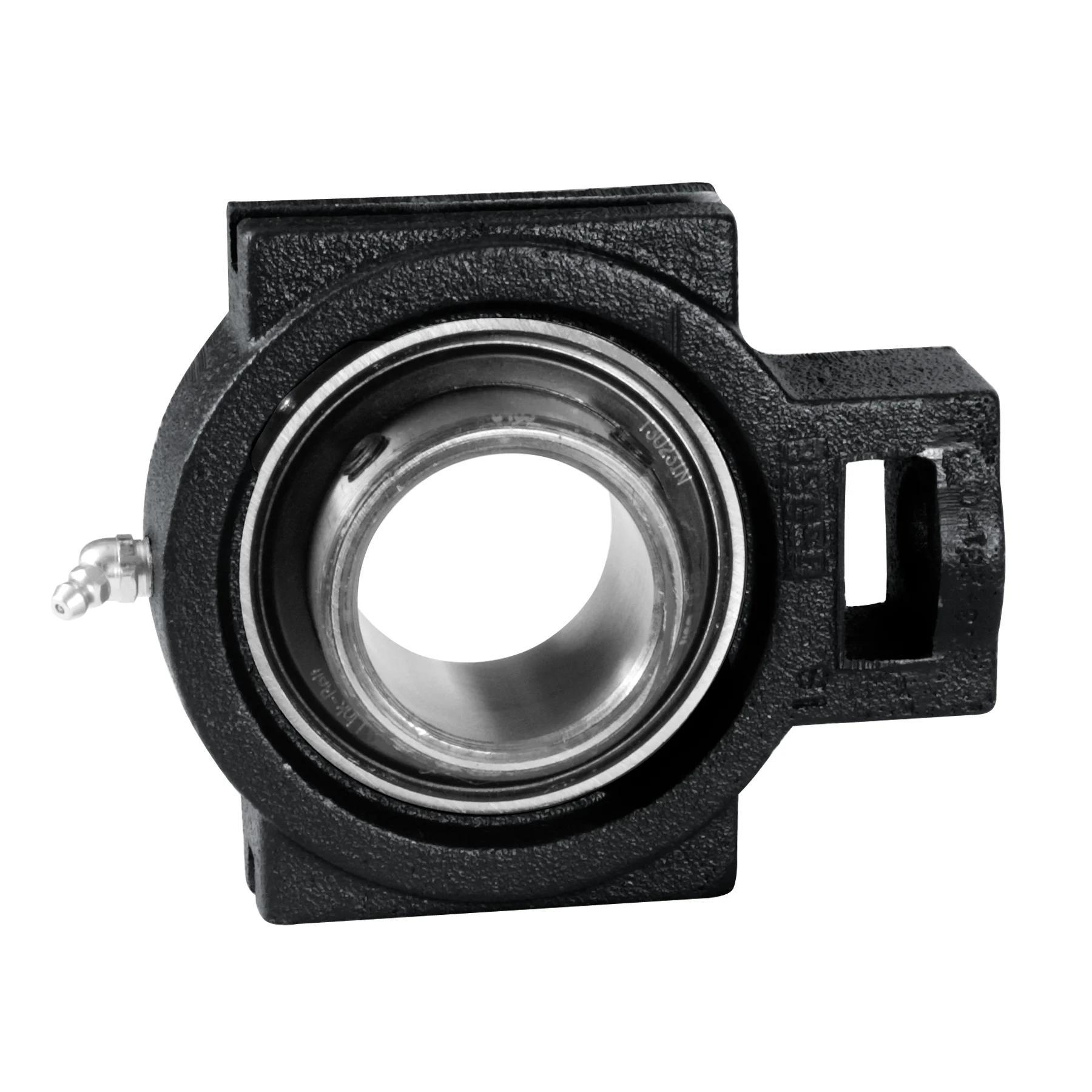

Link-Belt® 10408258 200 Standard Duty Standard Slot Take-Up Ball Bearing Unit, 5/8 in Dia Bore, 3 in L x 13/16 in W x 2-1/4 in H, 2360 lb Dynamic/1110 lb Static Load

  • Manufacturer: Regal Rexnord
  • Brand Name: Link-Belt®
  • Part Number: LNKT3U210N
  • Alt Part Number: T3U210N
  • MPN: 10408258
  • UPC: 662327148096
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

200 series standard and intermediate duty ball bearing units provide a versatility of application arrangements for carrying shafts with radial or combination radial and thrust loads. They are designed for general purpose industrial machinery, conveyors, chain and belt drives, fans and blowers, power transmission and many other applications.

Link-Belt® Take-Up Ball Bearing Unit, Standard Duty Standard Slot, Series: 200, 5/8 in Bore Dia, 3 in Length, 13/16 in Width, 2-1/4 in Height, 2360 lb Dynamic/1110 lb Static Load, Alloy Steel Bearing, 225 deg F, Powder Coated

Bearing Material      :      Alloy Steel
Bore Diameter      :      5/8 in
Finish      :      Powder Coated
Height      :      2-1/4 in
Length      :      3 in
Load Capacity      :      2360 lb Dynamic/1110 lb Static
Series      :      200
Temperature Rating      :      225 deg F
Type      :      Standard Duty Standard Slot
Width      :      13/16 in
  • 5/8 in Mounted Ball Bearing, Standard Duty, Cast Iron Take-up Block, Setscrew Locking, Single Lip Contact Seal
