Link-Belt® 10406786 LNKTU332
  1. pin-int

Link-Belt® 10406786 LNKTU332

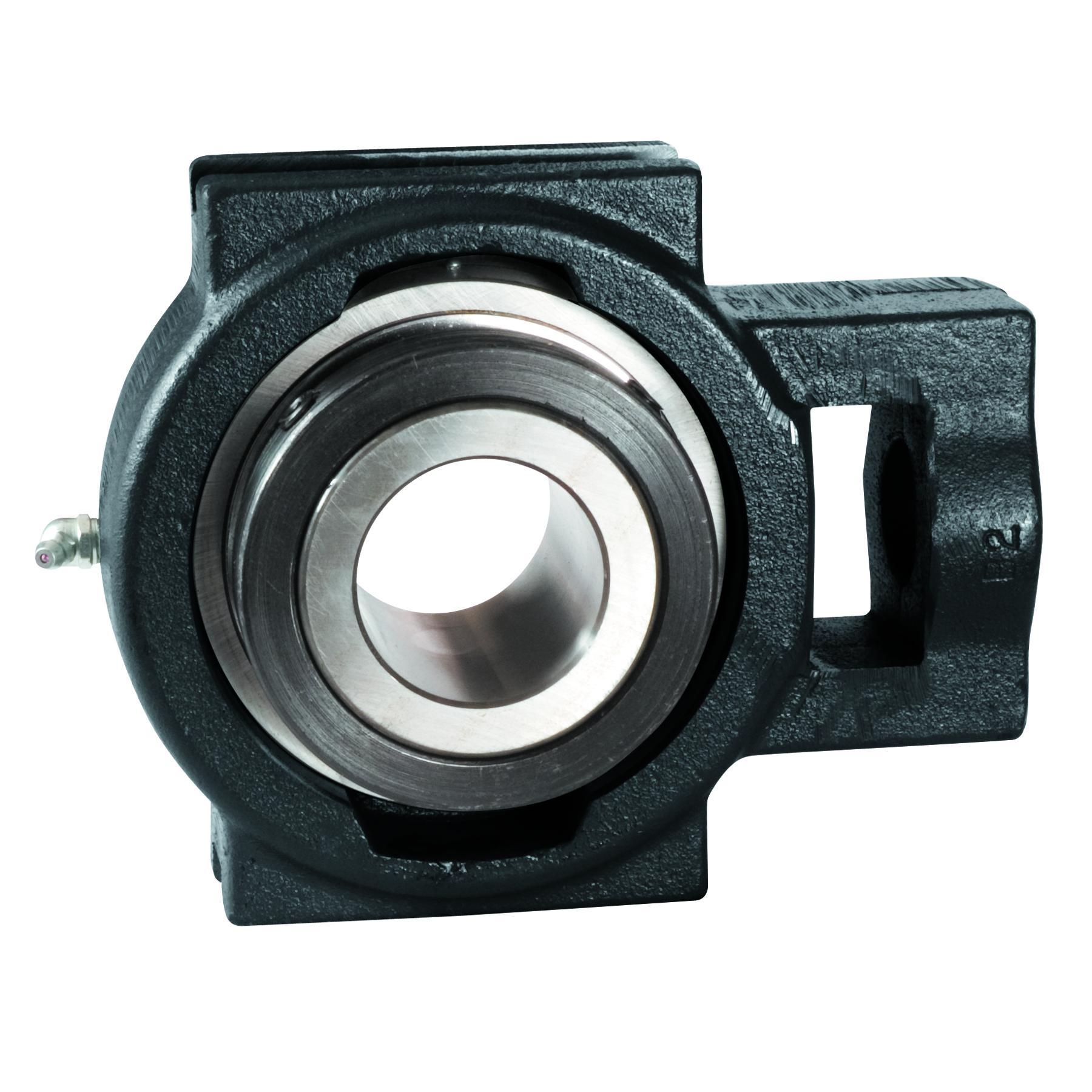

Link-Belt® 10406786 300 Heavy Duty Slotted Guide Take-Up Ball Bearing Unit, 2 in Dia Bore, 7-3/4 in L x 3-1/16 in W x 6-1/4 in H, 16070 lb Dynamic/10000 lb Static Load

  • Manufacturer: Regal Rexnord
  • Brand Name: Link-Belt®
  • Part Number: LNKTU332
  • Alt Part Number: TU332
  • MPN: 10406786
  • UPC: 662327708788
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

300 series wide inner ring ball bearing units are designed for heavy duty applications requiring high capacity and high speed in a compact footprint. Manufactured from quality alloy bearing steel to precision tolerances, these bearings are used extensively on general industrial equipment, high speed fans and blowers and heavier duty power transmission and material handling equipment.

Link-Belt® Take-Up Ball Bearing Unit, Heavy Duty Slotted Guide, Series: 300, 2 in Bore Dia, 7-3/4 in Length, 3-1/16 in Width, 6-1/4 in Height, 16070 lb Dynamic/10000 lb Static Load, Alloy Steel Bearing, -40 to 275 deg F, Powder Coated

Bearing Material      :      Alloy Steel
Bore Diameter      :      2 in
Finish      :      Powder Coated
Height      :      6-1/4 in
Length      :      7-3/4 in
Load Capacity      :      16070 lb Dynamic/10000 lb Static
Series      :      300
Temperature Rating      :      -40 to 275 deg F
Type      :      Heavy Duty Slotted Guide
Width      :      3-1/16 in
  • 2 in Mounted Ball Bearing, Heavy Duty, Cast Iron Take-up Block, Setscrew Locking, Clearance Seal
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Link-Belt_11KB204N_Catalog.pdf
  • pdfInstruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Link-Belt_TAS2160406_Manual.pdf
  • videoVIDEO LINK https://www.youtube.com/embed/ZRnGctS61pk?wmode=opaque&autoplay=0&autohide=1&showinfo=0&controls=2&rel=0&enablejsapi=1
