Link-Belt® 10342890 LNKMA5217TV

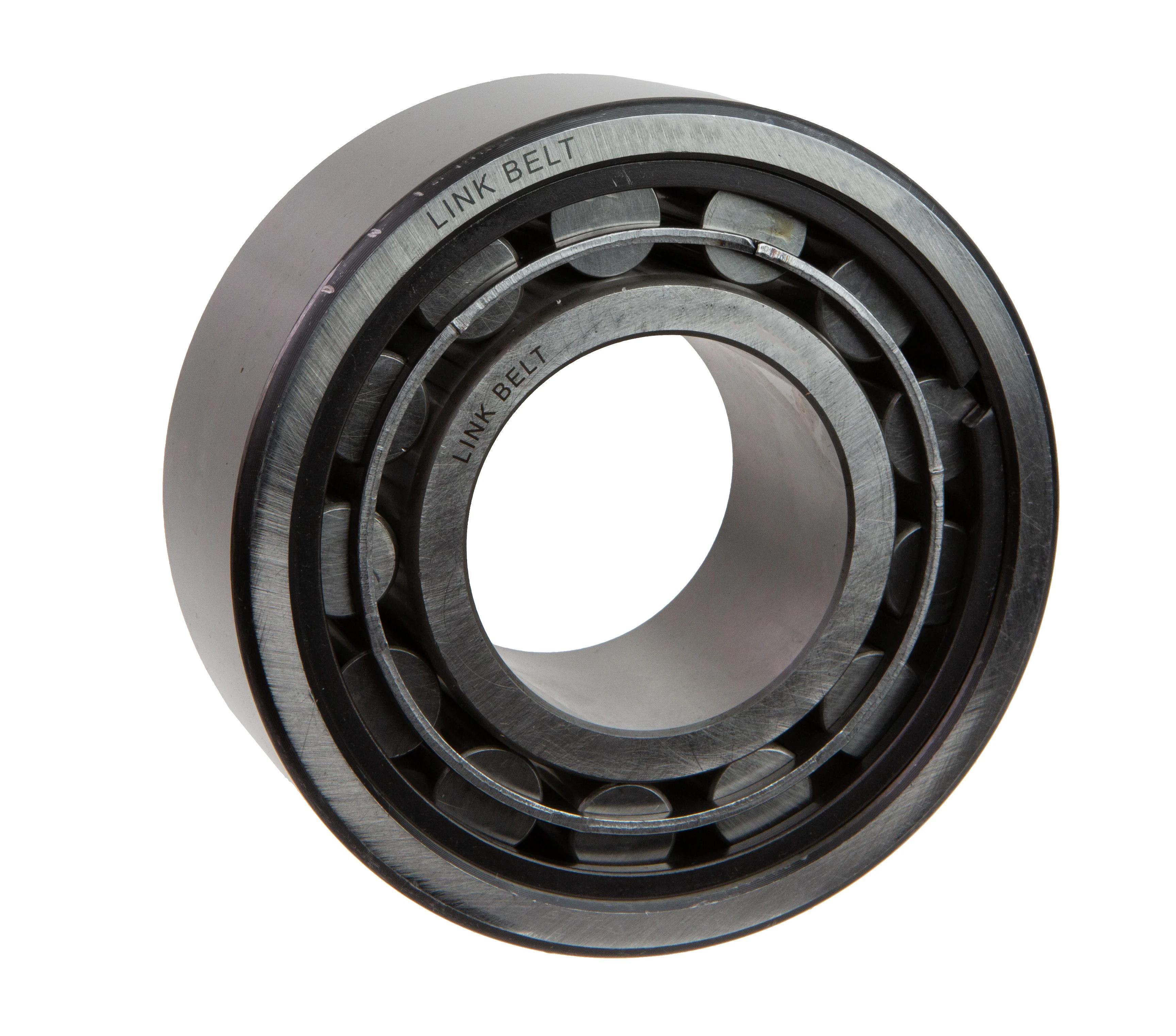

Link-Belt® 10342890 M5200 Light Unmounted Cylindrical Roller Bearing, 85 mm Dia Bore, 150 mm OD, 1 Row, 49.21 mm W, 201000 N Dynamic/354000 N Static Load
- Manufacturer: Regal Rexnord
- Brand Name: Link-Belt®
- Part Number: LNKMA5217TV
- Alt Part Number: MA5217TV
- MPN: 10342890
- UPC: 662327053185
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Link-Belt® cylindrical roller bearings offer a broad range of configuration options and features to ensure you get the best value on delivery and performance. Utilizing case-carburizing, bearing quality steel and complex geometries, our bearings are designed to consistently perform in demanding applications, and our broad product range includes a bearing for any application. Plus, we offer dedicated engineering support to help customize units to your specifications.
Link-Belt® Cylindrical Roller Bearing, Light Unmounted, Series: M5200, 85 mm Bore Dia, 150 mm Outside Dia, 1 Row, 49.21 mm W, Open Closure, 201000 N Dynamic/354000 N Static, Chrome Steel Bearing, Formed Steel Cage, -40 to 275 deg F, Uncoated
| Bearing Material | : | Chrome Steel |
| Bore Diameter | : | 85 mm |
| Cage Material | : | Formed Steel |
| Closure Type | : | Open |
| Finish | : | Uncoated |
| Load Capacity | : | 201000 N Dynamic/354000 N Static |
| Number of Rows | : | 1 |
| Outside Diameter | : | 150 mm |
| Series | : | M5200 |
| Temperature Rating | : | -40 to 275 deg F |
| Type | : | Light Unmounted |
| Width | : | 49.21 mm |
- Plain cylindrical inner ring
- Standard capacity
- Outer ring with two retaining rings in ID
- Separable ring
- Fully crowned rollers
- Precision ground ribs
- Rollers individually separated
- High and low-volume manufacturing capabilities
- Super-finished raceways for smooth operation
- Broad standard product range
- 5217 bearing number
