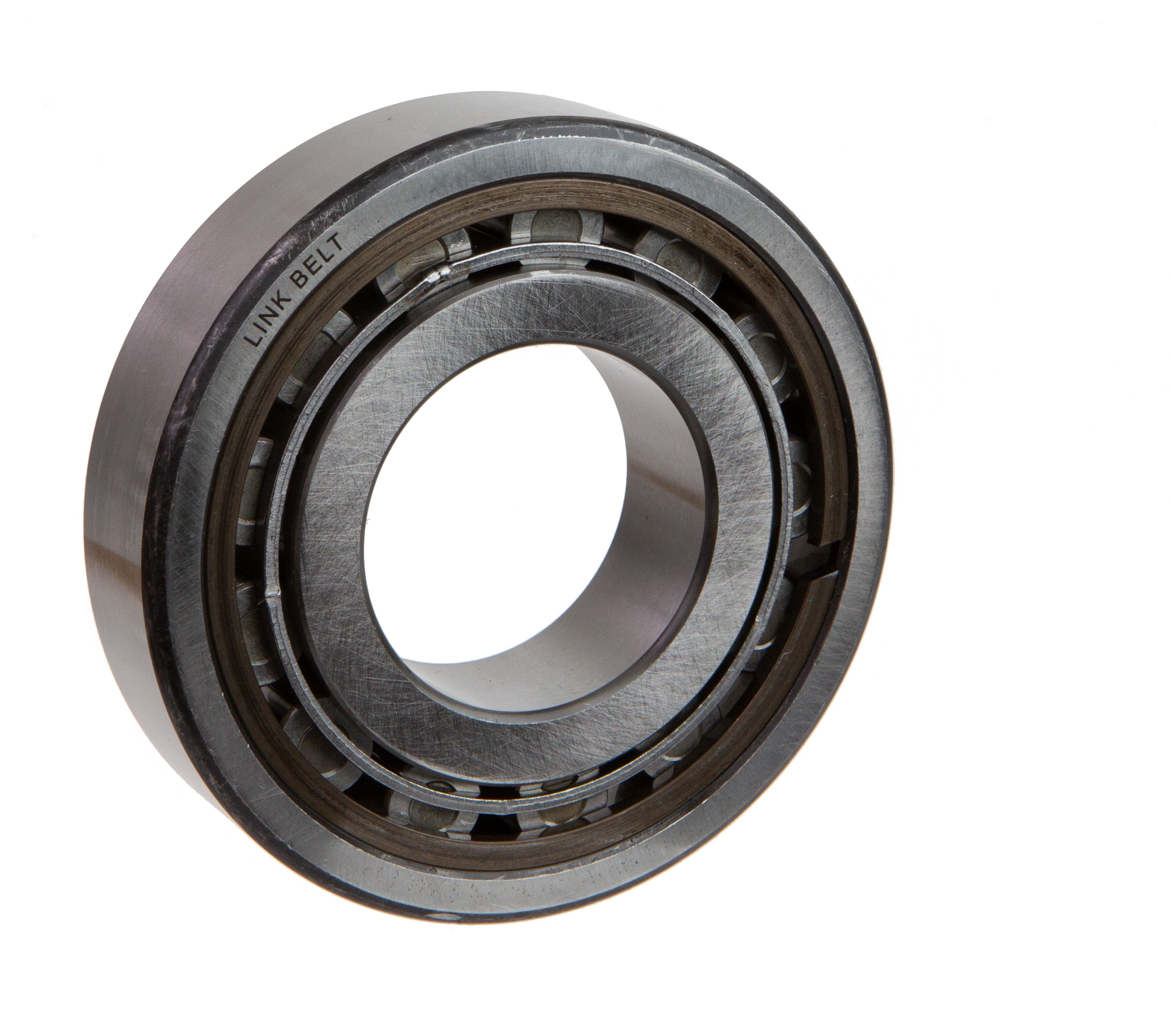

Link-Belt® 10320311 LNKMU1310TV
Link-Belt® 10320311 1300 Medium Narrow Width Cylindrical Roller Bearing, 50 mm Dia Bore, 110 mm OD, 1 Row, 27 mm W, 22700 lb Dynamic/24000 lb Static Load
- Manufacturer: Regal Rexnord
- Brand Name: Link-Belt®
- Part Number: LNKMU1310TV
- Alt Part Number: MU1310TV
- MPN: 10320311
- UPC: 662327058159
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Metric series cylindrical roller bearings are manufactured to ABMA boundary dimensions. These bearings require minimum space and provide maximum rated capacity. Various configurations including separable inner or outer ring combinations offer ample application flexibility.
Link-Belt® Cylindrical Roller Bearing, Narrow Width, Series: 1300 Medium, 50 mm Bore Dia, 110 mm Outside Dia, 1 Row, 27 mm W, Open Closure, 22700 lb Dynamic/24000 lb Static, Chrome Steel Bearing, Steel Cage, Uncoated
| Bearing Material | : | Chrome Steel |
| Bore Diameter | : | 50 mm |
| Cage Material | : | Steel |
| Closure Type | : | Open |
| Finish | : | Uncoated |
| Load Capacity | : | 22700 lb Dynamic/24000 lb Static |
| Number of Rows | : | 1 |
| Outside Diameter | : | 110 mm |
| Series | : | 1300 Medium |
| Type | : | Narrow Width |
| Width | : | 27 mm |
- High quality rings
- Micro finished raceways assure smooth operations
- Optimized raceway contact area
- Positive roller spacing
- Fully crowned roller
- Precision ground rib
- Contoured roller pockets
- Rollers individually separated
- Outer ring with two retaining rings in inside diameter
- Formed steel retainer
- Double rib inner ring
- Standard capacity
Instruction/Installation Manual
