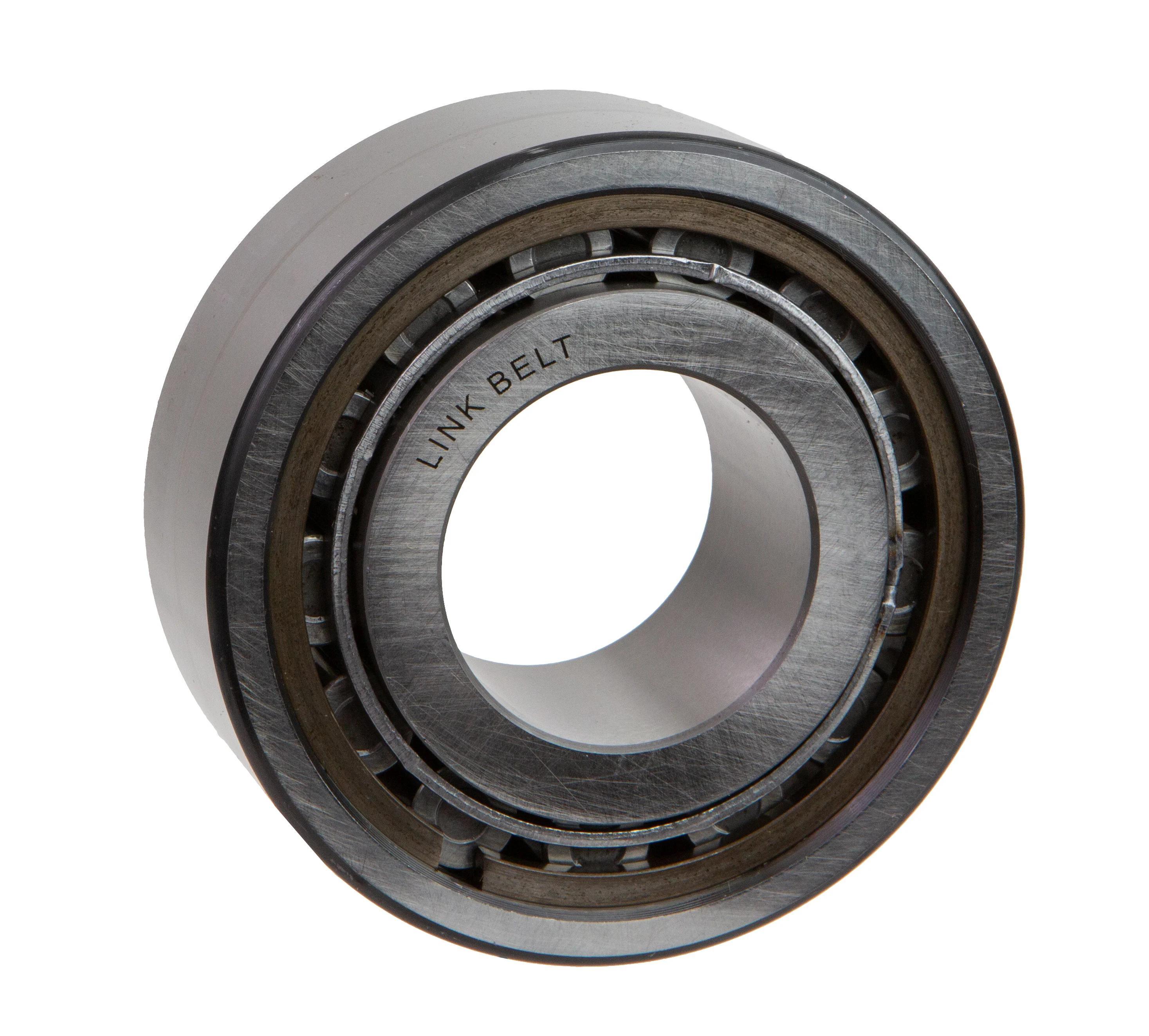

Link-Belt® 10066386 LNKMU5208TV
Link-Belt® 10066386 5200 Light Wide Width Cylindrical Roller Bearing, 40 mm Dia Bore, 80 mm OD, 1 Row, 30.162 mm W, 17500 lb Dynamic/20700 lb Static Load
- Manufacturer: Regal Rexnord
- Brand Name: Link-Belt®
- Part Number: LNKMU5208TV
- Alt Part Number: MU5208TV
- MPN: 10066386
- UPC: 662327058982
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Metric series cylindrical roller bearings are manufactured to ABMA boundary dimensions. These bearings require minimum space and provide maximum rated capacity. Various configurations including separable inner or outer ring combinations offer ample application flexibility.
Link-Belt® Cylindrical Roller Bearing, Wide Width, Series: 5200 Light, 40 mm Bore Dia, 80 mm Outside Dia, 1 Row, 30.162 mm W, Open Closure, 17500 lb Dynamic/20700 lb Static, Chrome Steel Bearing, Steel Cage, Uncoated
| Bearing Material | : | Chrome Steel |
| Bore Diameter | : | 40 mm |
| Cage Material | : | Steel |
| Closure Type | : | Open |
| Finish | : | Uncoated |
| Load Capacity | : | 17500 lb Dynamic/20700 lb Static |
| Number of Rows | : | 1 |
| Outside Diameter | : | 80 mm |
| Series | : | 5200 Light |
| Type | : | Wide Width |
| Width | : | 30.162 mm |
- High quality rings
- Micro finished raceways assure smooth operations
- Optimized raceway contact area
- Positive roller spacing
- Fully crowned roller
- Precision ground rib
- Contoured roller pockets
- Rollers individually separated
- Outer ring with two retaining rings in inside diameter
- Formed steel retainer
- Double rib inner ring
- Standard capacity
