LEESON® 110433.00 LSN110433

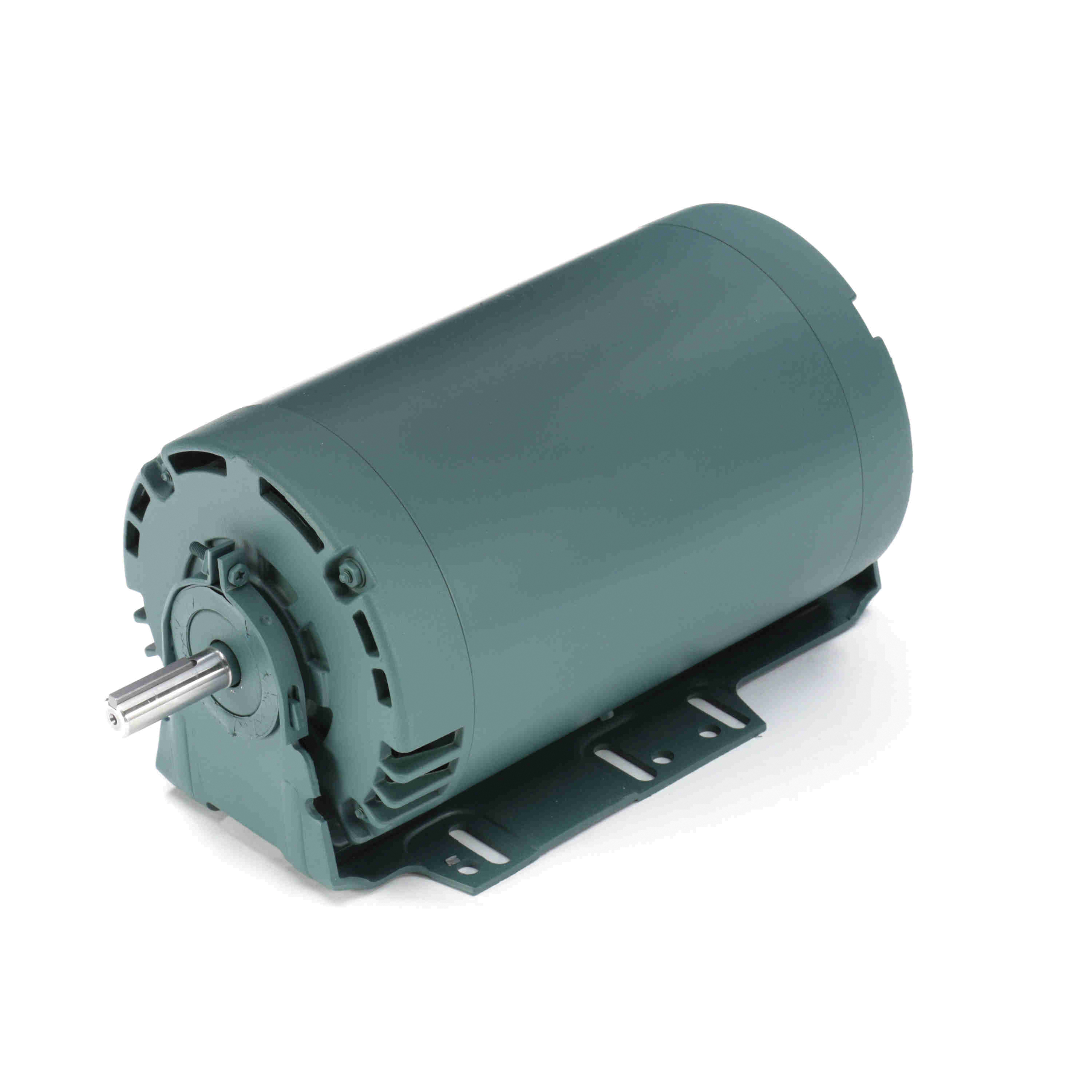

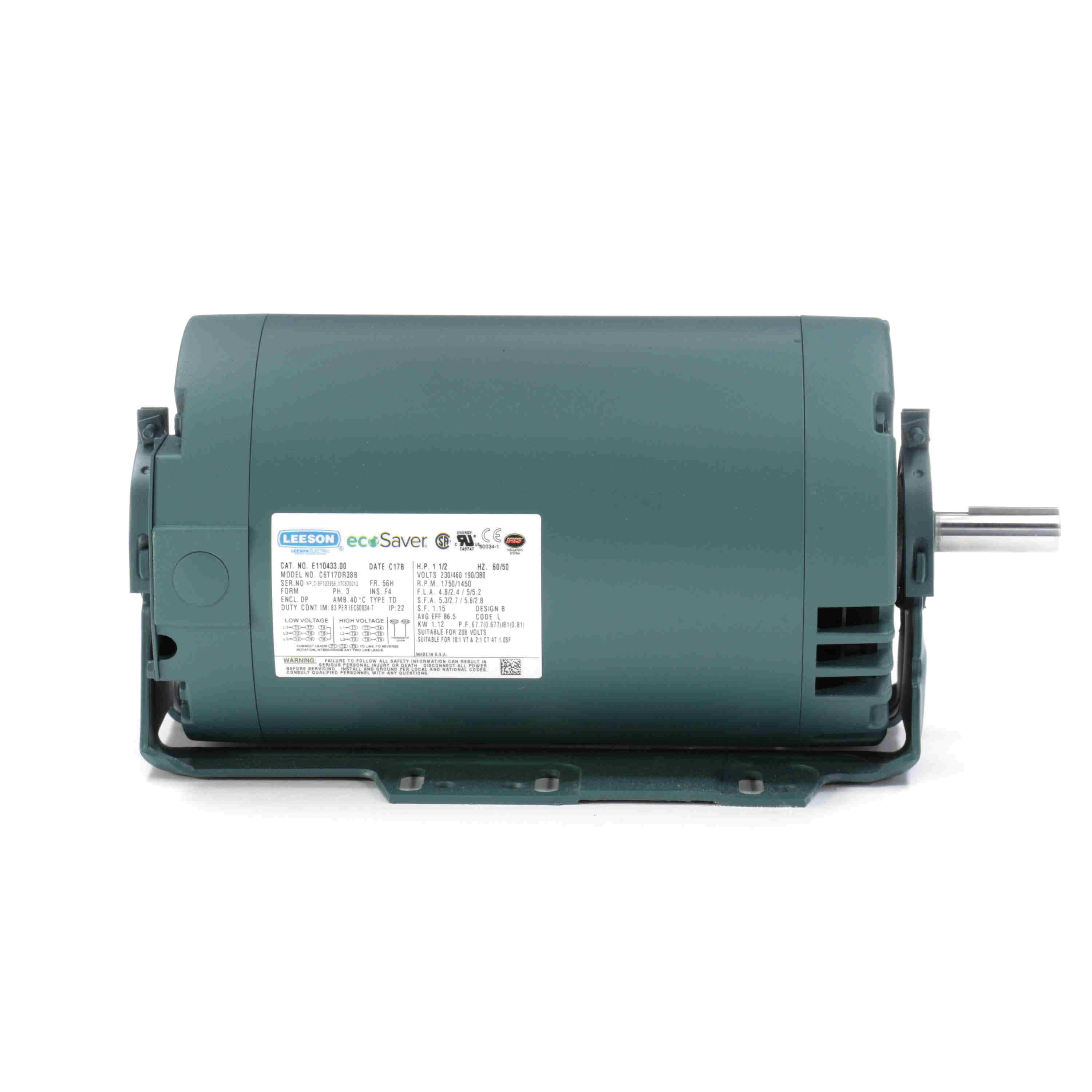

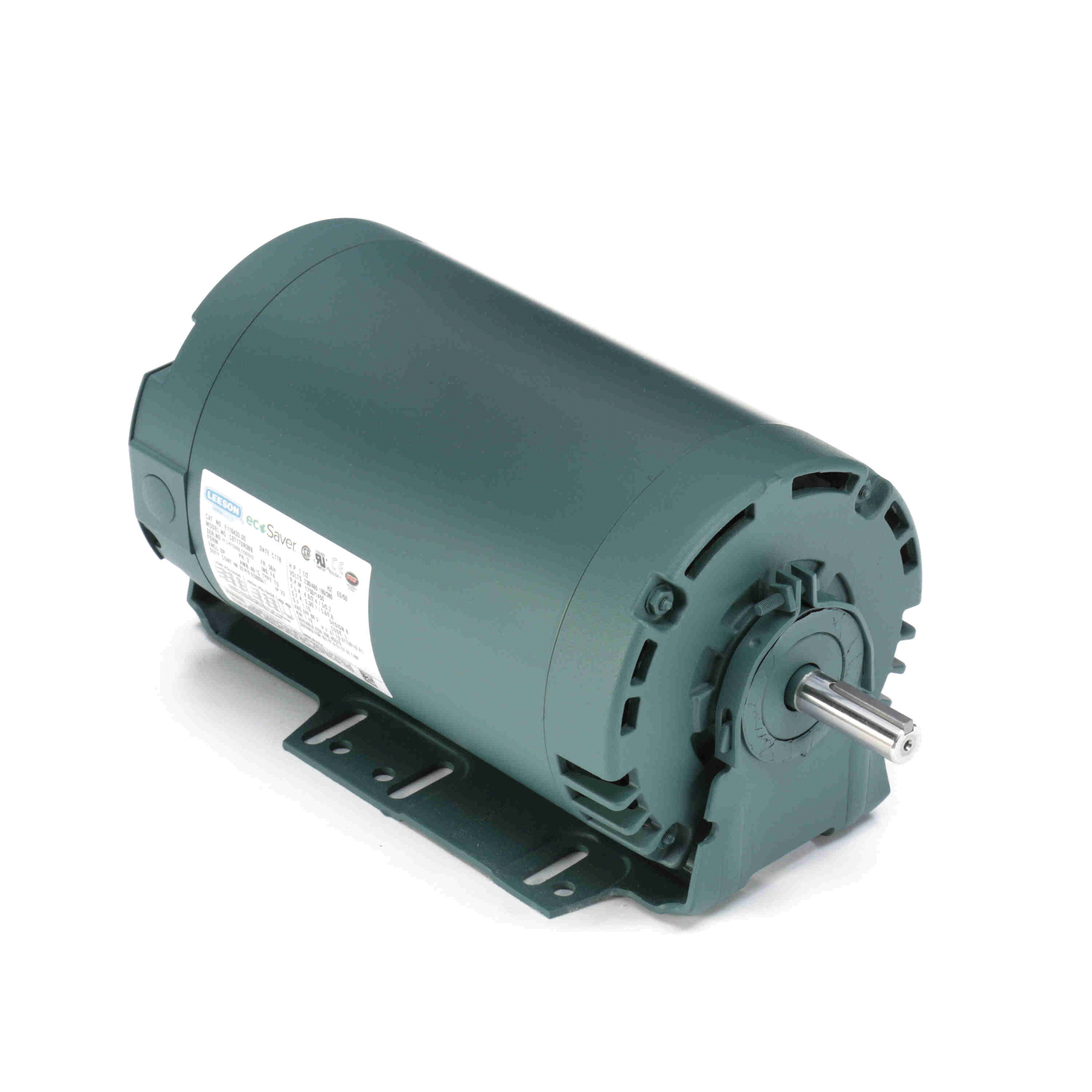

LEESON® 110433.00 4-Pole Continuous Duty AC Motor, DP Enclosure, 1.5 hp, 230/460 VAC, 60 Hz, 3 ph Phase, 56H Frame, 1725 rpm Speed, Resilient Base Mount
- Manufacturer: Regal Rexnord
- Brand Name: LEESON®
- Part Number: LSN110433
- Alt Part Number: C6T17DR4C
- MPN: 110433.00
- UPC: 691720008874
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
LEESON® AC Motor, 4-Pole Continuous Duty, Application Type: Fan and Blower Motors, General Purpose AC Motors, 1.5 hp, 230/460 VAC, 5.6/2.8 A, 60 Hz, 3 ph, 1725 rpm, 1 Speed, DP, 56H Frame, 0.63 in Dia x 1.88 in L Shaft, Reversible, Service Factor: 1.15, Ball Bearing, 4.5 ft-lb, Resilient Base Mount, 40 deg C, Insulation Class: Class B, Rolled Steel, 10:1 Variable Torque Speed, 11.82 in L x 6.73 in H
| Amperage Rating | : | 5.6/2.8 A |
| Application Type | : | Fan and Blower Motors, General Purpose AC Motors |
| Bearing Type | : | Ball |
| Dimensions | : | 11.82 in L x 6.73 in H |
| Enclosure Type | : | DP |
| Frame | : | 56H |
| Frequency Rating | : | 60 Hz |
| Horsepower | : | 1.5 hp |
| Insulation Class | : | Class B |
| Material | : | Rolled Steel |
| Mounting Type | : | Resilient Base |
| Number of Speeds | : | 1 |
| Phase | : | 3 |
| Rotation | : | Reversible |
| Service Factor | : | 1.15 |
| Shaft Size | : | 0.63 in Dia x 1.88 in L |
| Speed | : | 1725 rpm |
| Temperature Rating | : | 40 deg C |
| Torque Rating | : | 4.5 ft-lb |
| Type | : | 4-Pole Continuous Duty |
| Variable Torque Speed Range | : | 10:1 |
- Designed for belted loads
- NEMA design B performance
- Moderate starting torque
- Squirrel cage induction run
Specification Sheet
