LEESON® 100123.00 LSN100123

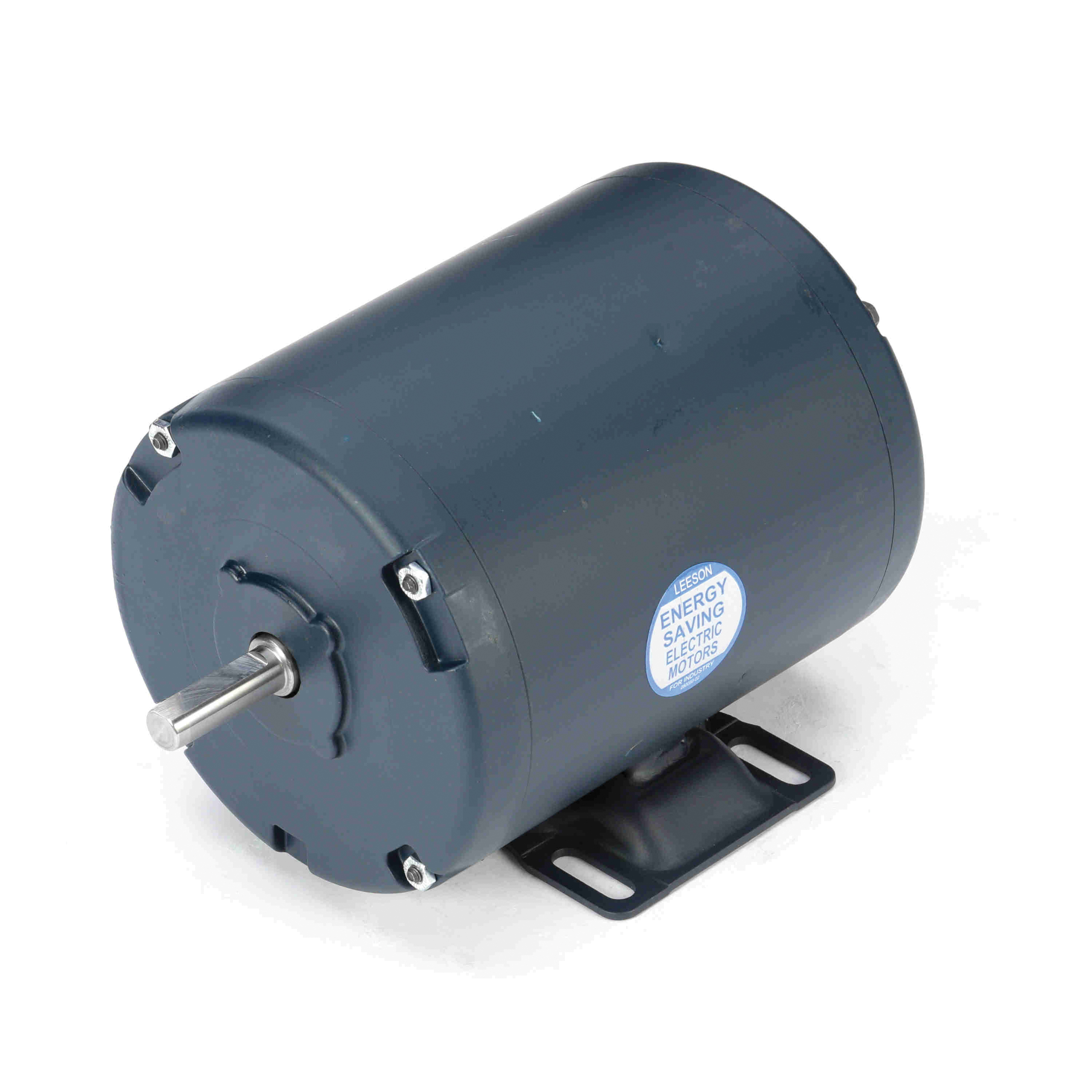

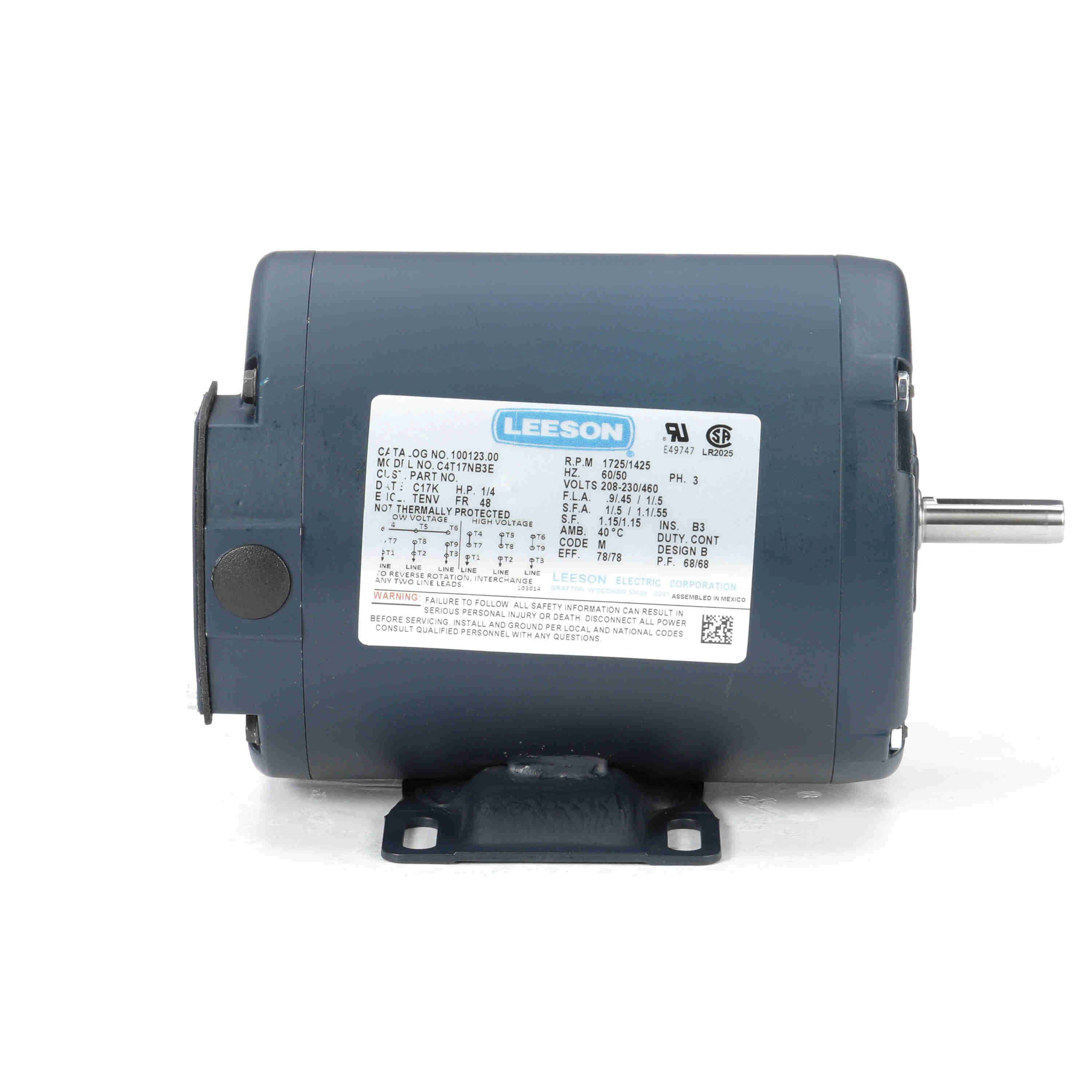

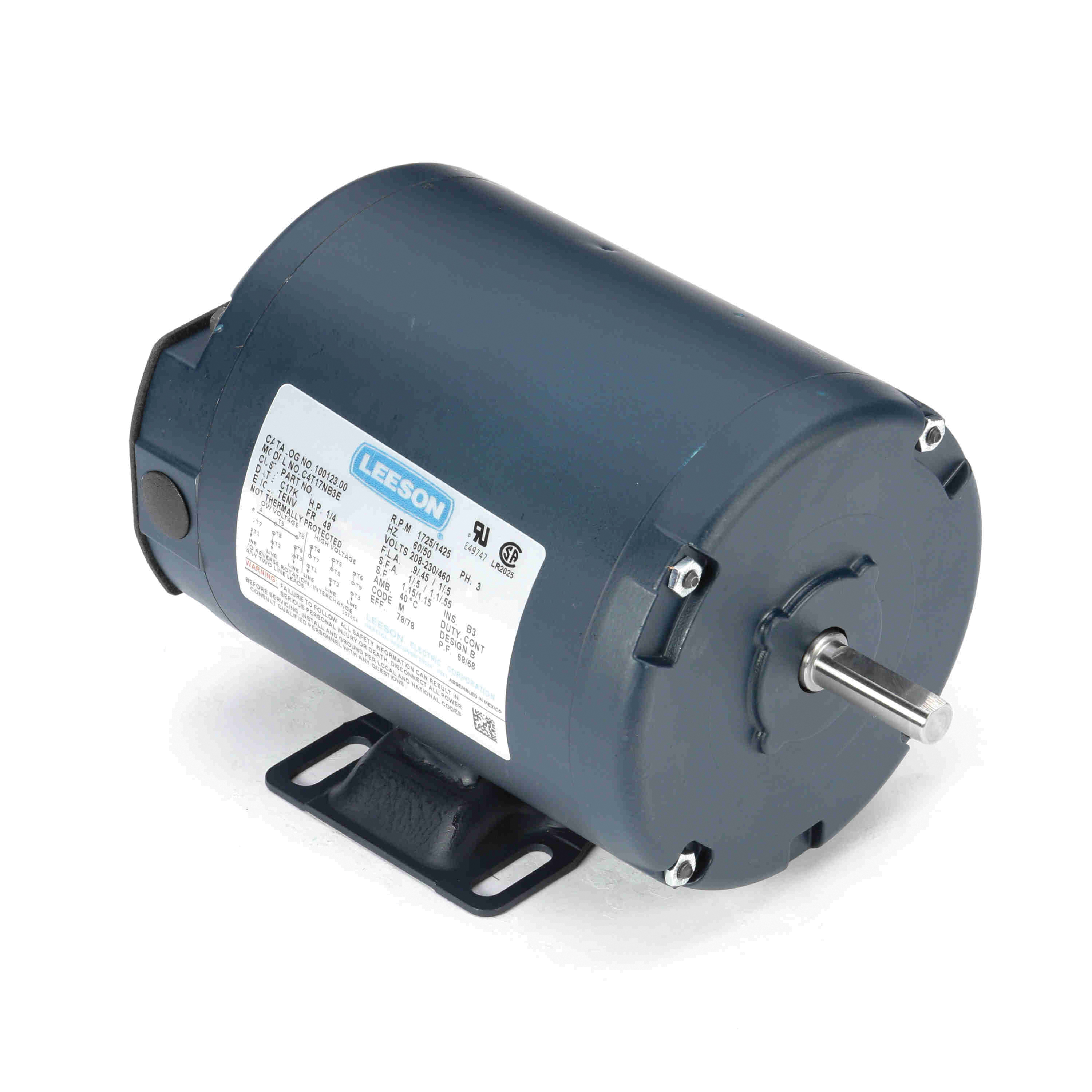

LEESON® Ultimate e® 100123.00 4-Pole Continuous Duty AC Motor, Totally Enclosed Nonvented (TENV) Enclosure, 0.25 hp, 208 to 230/460 VAC, 60 Hz, 3 ph Phase, 48 Frame, 1725 rpm Speed, Rigid Base Mount
- Manufacturer: Regal Rexnord
- Brand Name: LEESON®
- Part Number: LSN100123
- Alt Part Number: C4T17NB3E
- MPN: 100123.00
- UPC: 691720004609
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
-
Price:
LEESON® Ultimate e® AC Motor, 4-Pole Continuous Duty, Application Type: General Purpose AC Motors, 0.25 hp, 208 to 230/460 VAC, 0.9 to 0.9/0.45 A, 60 Hz, 3 ph, 1725 rpm, 1 Speed, Totally Enclosed Nonvented (TENV), 48 Frame, 1/2 in Dia x 1-1/2 in L Shaft, Reversible, Service Factor: 1.15, Ball Bearing, 12.06 ft-lb, Rigid Base Mount, 40 deg C, Insulation Class: Class B, Rolled Steel, 10:1 Variable Torque Speed, 5.62 in Dia x 9.18 in L x 5.81 in H
| Amperage Rating | : | 0.9 to 0.9/0.45 A |
| Application Type | : | General Purpose AC Motors |
| Bearing Type | : | Ball |
| Dimensions | : | 5.62 in Dia x 9.18 in L x 5.81 in H |
| Enclosure Type | : | Totally Enclosed Nonvented (TENV) |
| Frame | : | 48 |
| Frequency Rating | : | 60 Hz |
| Horsepower | : | 0.25 hp |
| Insulation Class | : | Class B |
| Material | : | Rolled Steel |
| Mounting Type | : | Rigid Base |
| Number of Speeds | : | 1 |
| Phase | : | 3 |
| Rotation | : | Reversible |
| Service Factor | : | 1.15 |
| Shaft Size | : | 1/2 in Dia x 1-1/2 in L |
| Speed | : | 1725 rpm |
| Temperature Rating | : | 40 deg C |
| Torque Rating | : | 12.06 ft-lb |
| Type | : | 4-Pole Continuous Duty |
| Variable Torque Speed Range | : | 10:1 |
- Standard efficient ratings
- Inverter rated
- Shielded ball bearings for direct coupled applications
- Dynamically balanced rotors
- Torques exceed NEMA performance standards
- Squirrel cage induction run
