Koyo RCB-061014-FS KOYRCB061014FS

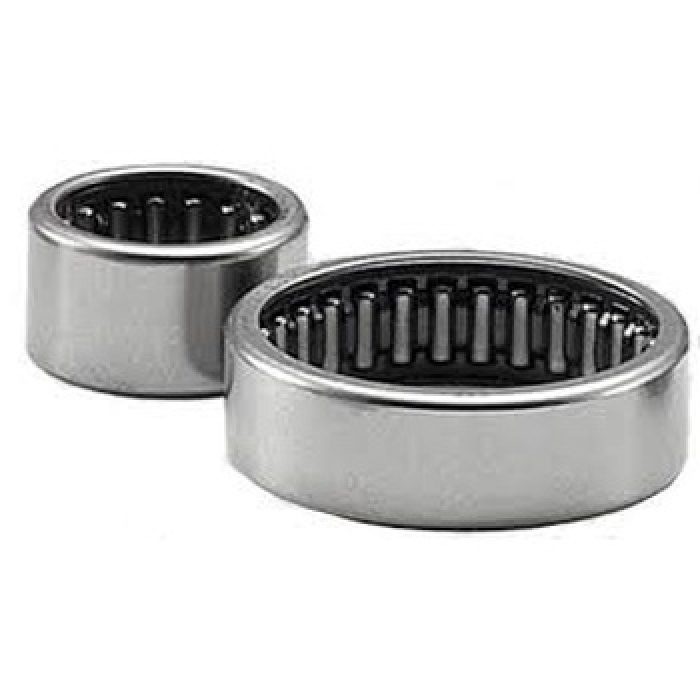

Koyo RCB-061014-FS Inch Series Caged Drawn Cup Roller Clutch, 3/8 in Dia Bore, 5/8 in OD, 7/8 in W, CW/CCW, 48.2 in-lb Torque
- Manufacturer: JTEKT Corporation
- Brand Name: Koyo
- Part Number: KOYRCB061014FS
- Alt Part Number: RCB061014FSPBL068
- MPN: RCB-061014-FS
- UPC: 605790209970
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/PK
-
Price:
Drawn cup needle roller clutches are similar to drawn cup needle roller bearings in design, however, they allow free rotation in only one direction while transmitting torque in the opposite direction. These designs use the same small radial section as drawn cup needle roller bearings and are offered as clutch-only units or as clutch and bearing assemblies.
Koyo Drawn Cup Roller Clutch, Caged, Series: RCB Inch Series, 3/8 in Bore, 5/8 in OD, 7/8 in Width, CW/CCW Lock Direction, 48.2 in-lb Torque, 1350 lbf Dynamic/1100 lbf Static Load, Steel Bearing, Acetyl Resin Polymer Cage, 18000 rpm Maximum, 250 deg F
| Bearing Material | : | Steel |
| Bore Diameter | : | 3/8 in |
| Cage Material | : | Acetyl Resin Polymer |
| Load Capacity | : | 1350 lbf Dynamic/1100 lbf Static |
| Lock Direction | : | CW/CCW |
| Maximum Speed | : | 18000 rpm |
| Outside Diameter | : | 5/8 in |
| Series | : | RCB Inch Series |
| Temperature Rating | : | 250 deg F |
| Torque Rating | : | 48.2 in-lb |
| Type | : | Caged |
| Width | : | 7/8 in |
- Item Features 01=Compact, lightweight and operate directly on a hardened shaft
- Item Features 02=Installation is easily accomplished with a simple press fit
