Koyo B-36 KOYB36
  1. pin-int

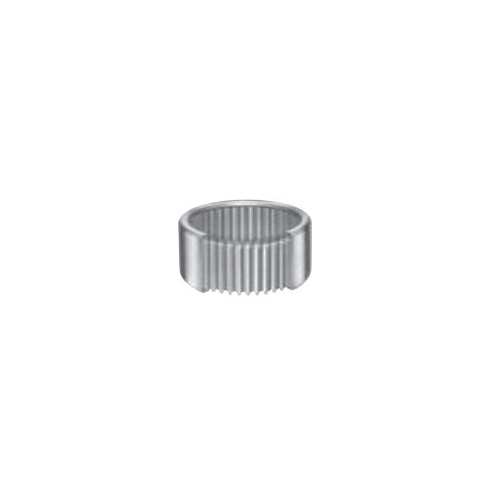

Koyo B-36 KOYB36

Koyo B-36 B Series Drawn Cup Needle Roller Bearing, 3/16 in Dia Bore, 0.3438 in OD, 3/8 in W, 950 lb Load

  • Manufacturer: JTEKT Corporation
  • Brand Name: Koyo
  • Part Number: KOYB36
  • MPN: B-36
  • UPC: 605790215278
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Drawn cup needle roller bearings support radial loads and reduce friction between rotating components, with a drawn outer shell serving as a raceway to the rollers. The small cross-section of the drawn cup bearing provides high load-carrying capability with minimum required space, drawn cup bearings are easily installed with a press fit in the housing.

Koyo Needle Roller Bearing, Drawn Cup, Series: B Series, 3/16 in Bore, 0.3438 in OD, 3/8 in Width, Open Closure, 950 lb Load

Bore Diameter      :      3/16 in
Closure Type      :      Open
Load Capacity      :      950 lb
Outside Diameter      :      0.3438 in
Series      :      B Series
Type      :      Drawn Cup
Width      :      3/8 in
  • Full complement bearings handle high radial load carrying capability
  • 850 lb dynamic/950 lb static load
