Koyo 6003 KOY6003C3
  1. pin-int

Koyo 6003 KOY6003C3

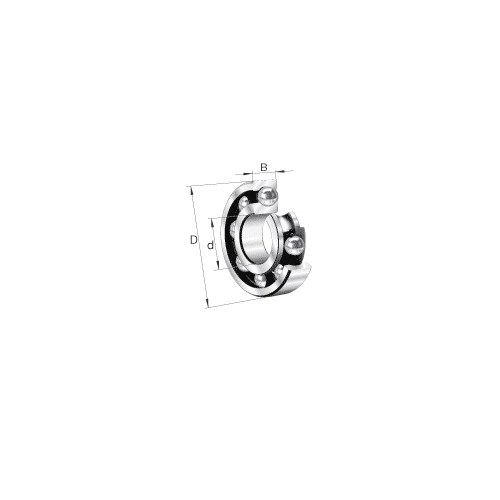

Koyo 6003 60 Series Caged Cylindrical Bore Extremely Light Deep Groove Ball Bearing, 17 mm Dia Bore, 35 mm Dia Outside, 1 Rows, 10 mm W, 7.5 kN Dynamic/3.25 kN Static Load

  • Manufacturer: JTEKT Corporation
  • Brand Name: Koyo
  • Part Number: KOY6003C3
  • MPN: 6003
  • UPC: 605790043079
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Pricing and Availability

Koyo, 6003, Deep Groove Ball Bearing, Caged Cylindrical Bore Extremely Light, Series: 60 Series, 17 mm Bore, 35 mm OD, 1 Rows, 10 mm Width, Open Closure, 7.5 kN Dynamic/3.25 kN Static Load, Pressed Steel Cage, 21000 rpm Grease/25000 rpm Oil Maximum, -30 to 120 deg C

Bearing Material      :      Steel
Bore Diameter      :      17 mm
Cage Material      :      Pressed Steel
Closure Type      :      Open
Load Capacity      :      7.5 kN Dynamic/3.25 kN Static
Maximum Speed      :      21000 rpm Grease/25000 rpm Oil
Number of Rows      :      1
Outside Diameter      :      35 mm
Series      :      60 Series
Temperature Rating      :      -30 to 120 deg C
Type      :      Caged Cylindrical Bore Extremely Light
Width      :      10 mm
  • All double sealed and double shielded product come with Polyrex XM Grease
  • Available in max capacity or special heat treat (RSH2 in suffix)
  • Available in miniature (EE) inch product
  • Available with cermamic balls (3NCH or 3NC in prefix)
  • Available with seals (2RD, 2RS, 2RU), shields (ZZ), open and/or with a snap ring (NR) options
  • Available with steel (no callout) or brass (FY) cage
  • Made from premium high carbon, high chromium Japanese steel
  • The 2RD Seal is used for high speed and/or reduced drag applications in addition to applications that require maximum sealing ability
