Koyo 5310ZZ KOY5310ZZ

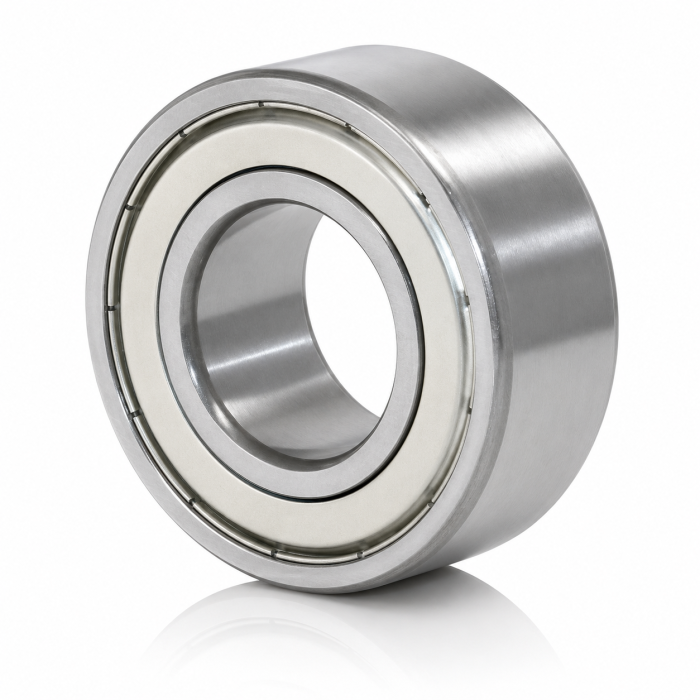

Koyo 5310ZZ 5300 Round Angular Contact Ball Bearing, 50 mm Dia Bore, 110 mm Dia Outside, 2 Rows, 44.4 mm W, 24 deg, 102 kN Dynamic/62.2 kN Static Load
- Manufacturer: JTEKT Corporation
- Brand Name: Koyo
- Part Number: KOY5310ZZ
- MPN: 5310ZZ
- UPC: 605790370342
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/PK
-
Price:
Koyo, 5310ZZ, Angular Contact Ball Bearing, Round, Series: 5300, 50 mm Bore, 110 mm OD, 2 Rows, 44.4 mm Width, 24 deg Contact Angle, Double Shield Closure, 102 kN Dynamic/62.2 kN Static Load, Steel Bearing, 3600 rpm Grease Maximum, -30 to 110 deg C
| Bearing Material | : | Steel |
| Bore Diameter | : | 50 mm |
| Cage Material | : | Steel |
| Closure Type | : | Double Shield |
| Contact Angle | : | 24 deg |
| Load Capacity | : | 102 kN Dynamic/62.2 kN Static |
| Maximum Speed | : | 3600 rpm Grease |
| Number of Rows | : | 2 |
| Outside Diameter | : | 110 mm |
| Series | : | 5300 |
| Temperature Rating | : | -30 to 110 deg C |
| Type | : | Round |
| Width | : | 44.4 mm |
- 24 deg contact angle
- Available with seals (2RS), shields (ZZ) and/or snap ring (NR)
- Made from premium high carbon, high chromium Japanese steel
