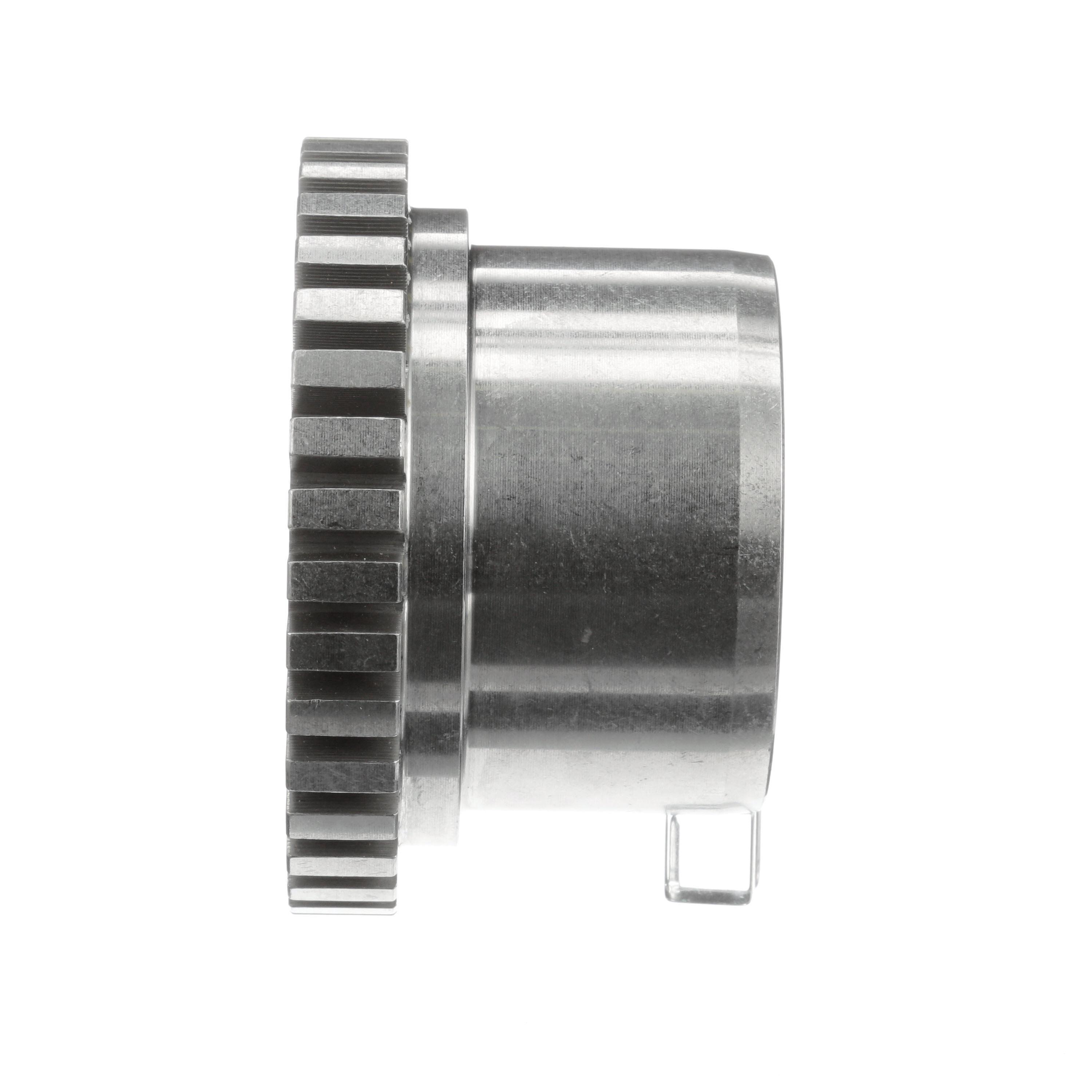

Kop-Flex® 2297596 KOP1110 HUB FB
Kop-Flex® Kop-Grid® 2297596 Finished Bore Coupling Hub Without Setscrews, 1110, 4-1/2 in Dia Bore, 6.31 in Dia Hub, Carbon Steel
- Manufacturer: Regal Rexnord
- Brand Name: Kop-Flex®
- Part Number: KOP1110 HUB FB
- Alt Part Number: 1110 HUB FB
- MPN: 2297596
- UPC: 662384102130
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Kop-Flex® Kop-Grid® Coupling Hub, Finished Bore, 1110 Coupling, 4-1/2 in Bore Dia, 6.31 in Hub Dia, 5 in Hub Length, 1 in W x 1/2 in D Keyway, 2250/3000 rpm Maximum, Carbon Steel
| Bore Diameter | : | 4-1/2 in |
| Coupling Size | : | 1110 |
| Hub Diameter | : | 6.31 in |
| Hub Length | : | 5 in |
| Keyway Size | : | 1 in W x 1/2 in D |
| Material | : | Carbon Steel |
| Maximum Speed | : | 2250/3000 rpm |
| Type | : | Finished Bore |
- Provide torsional damping to reduce torsional vibration and cushion shock loads
- Grids act much like a protective overload shear device during overloads to protect expensive, connected equipment
- Quick and easy installation with low maintenance
- With interference fit
- All-metal end ring seal design for maximum service life
- The industry standard for over 75 years
Specification Sheet
