Kop-Flex® 2284750 KOP3H MMHUB08

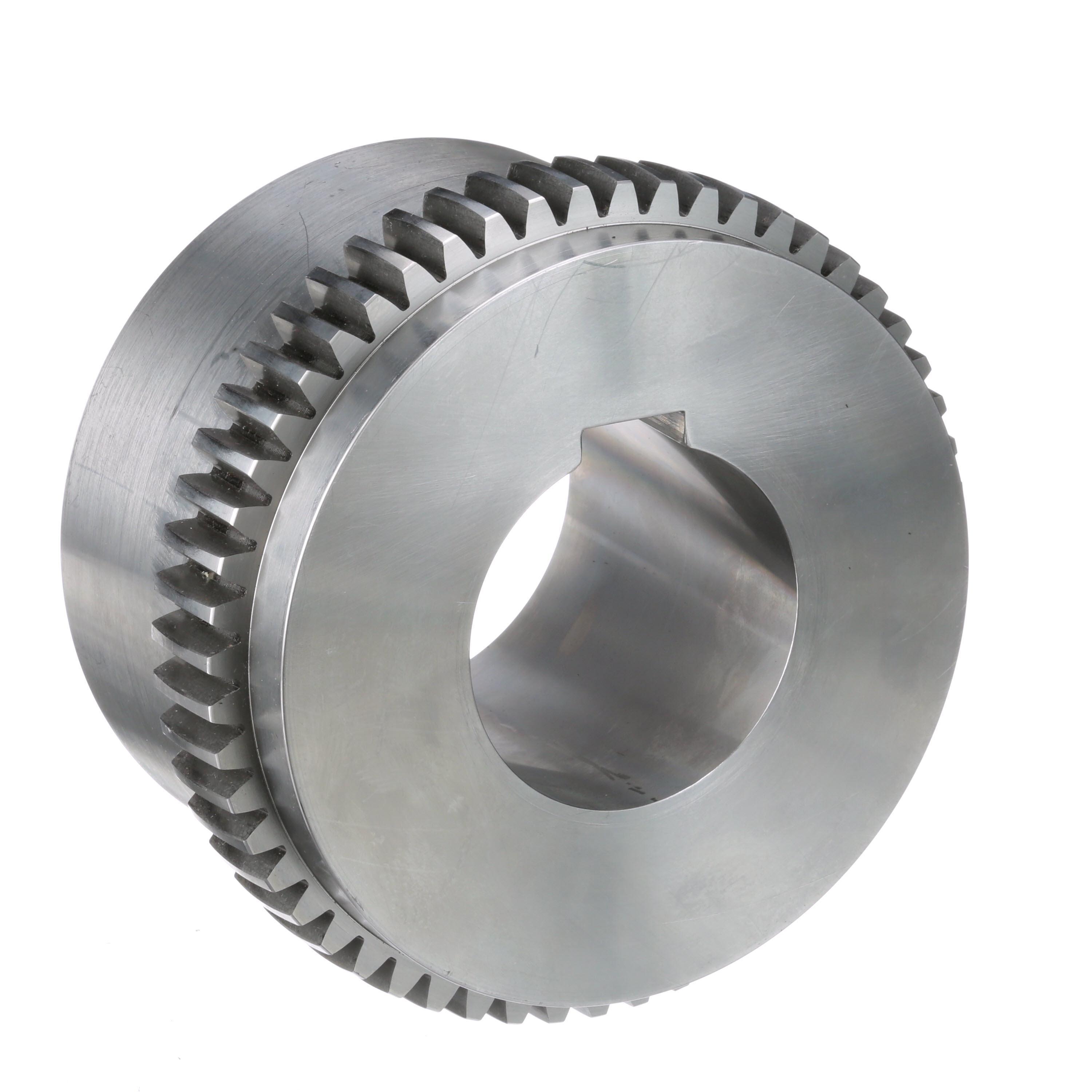

Kop-Flex® 2284750 Mill Motor Hub, 3 Coupling, 2.5298 to 2.9985 in Dia Bore, 4-1/2 in Length Through Bore
- Manufacturer: Regal Rexnord
- Brand Name: Kop-Flex®
- Part Number: KOP3H MMHUB08
- Alt Part Number: 3H MMHUB08
- MPN: 2284750
- UPC: 662384460131
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Kop-Flex® Mill Motor Hub, 3 Coupling, 2.5298 to 2.9985 in Bore Dia, 3/4 x 1/4 in Keyway, 6800 rpm Maximum, 4-1/2 in Length Through Bore
| Bore Diameter | : | 2.5298 to 2.9985 in |
| Coupling Size | : | 3 |
| Keyway Size | : | 3/4 x 1/4 in |
| Length Through Bore | : | 4-1/2 in |
| Maximum Speed | : | 6800 rpm |
- Large bore capacity with O-ring seal design and the most economical gear coupling design
- Curved face teeth (sizes 1 through 7) for up to 1.5 deg static misalignment capability
- Precision drilled flange bolt holes with special body-fitting, grade 5 bolts for a long-lasting piloted flange connection
- Flange interchangeable with all the competitors
- Large gear tooth pitch diameter with high torque capacity
- Close fitting, tight tolerance flange holes and bolt holes
- Field replaceable and standard nitrile rubber O-ring seal
- Grease lubrication required
