Kop-Flex® 2274603 KOP1050 HUBXH

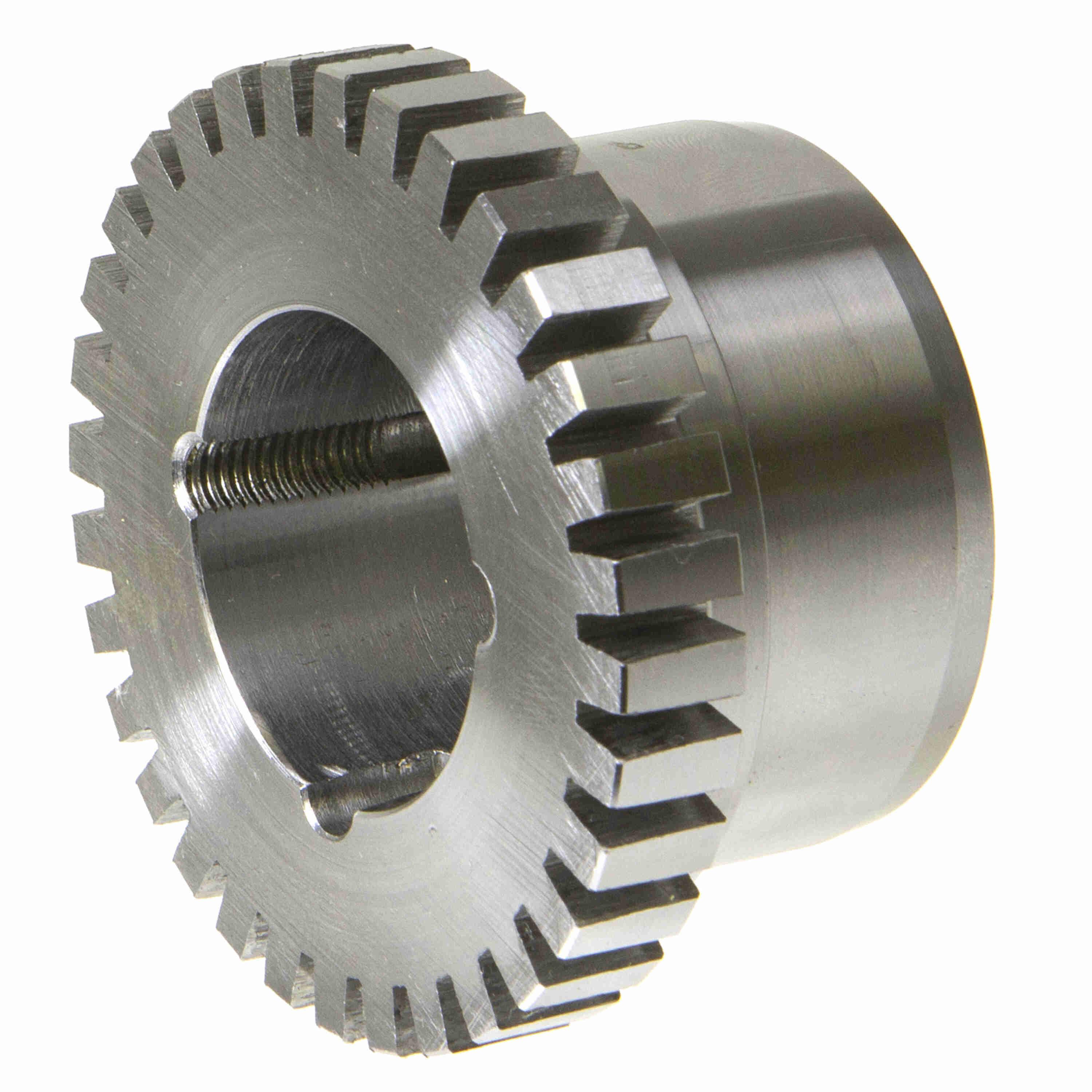

Kop-Flex® Kop-Grid® 2274603 Split-Taper® Bushed Coupling Hub, 1050, 1-1/2 in Dia Bore, 2.38 in Length Through Bore, 2.62 in Dia Hub, Carbon Steel
- Manufacturer: Regal Rexnord
- Brand Name: Kop-Flex®
- Part Number: KOP1050 HUBXH
- Alt Part Number: 1050 HUBXH
- MPN: 2274603
- UPC: 662384102345
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Kop-Flex® Kop-Grid® Coupling Hub, Split-Taper® Bushed, 1050 Coupling, 1-1/2 in Bore Dia, 2.62 in Hub Dia, 2.38 in Hub Length, 4500/6000 rpm Maximum, 2.38 in Length Through Bore, Carbon Steel
| Bore Diameter | : | 1-1/2 in |
| Coupling Size | : | 1050 |
| Hub Diameter | : | 2.62 in |
| Hub Length | : | 2.38 in |
| Length Through Bore | : | 2.38 in |
| Material | : | Carbon Steel |
| Maximum Speed | : | 4500/6000 rpm |
| Type | : | Split-Taper® Bushed |
- Provide torsional damping to reduce torsional vibration and cushion shock loads
- Grids act much like a protective overload shear device during overloads to protect expensive, connected equipment
- Quick and easy installation with low maintenance
- Uses H bushing
- NG Evo (gray blue in color) conveyor components made from engineered plastic resin
- Longest Life
- Lowest friction
- Good chemical resistance
- Less dusting than acetal chains
Specification Sheet
