Kop-Flex® 1963438 KOP2H MMHUB06

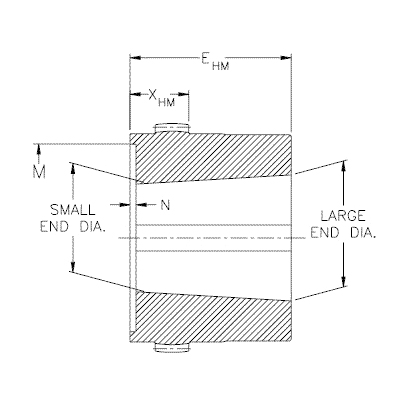

Kop-Flex® 1963438 Mill Motor Hub, 2 Coupling, 2.0823 to 2.499 in Dia Bore, 4-3/16 in Length Through Bore
- Manufacturer: Regal Rexnord
- Brand Name: Kop-Flex®
- Part Number: KOP2H MMHUB06
- Alt Part Number: 2H MMHUB06
- MPN: 1963438
- UPC: 662384460049
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Kop-Flex® Mill Motor Hub, 2 Coupling, 2.0823 to 2.499 in Bore Dia, 1/2 x 1/4 in Keyway, 9300 rpm Maximum, 4-3/16 in Length Through Bore
| Bore Diameter | : | 2.0823 to 2.499 in |
| Coupling Size | : | 2 |
| Keyway Size | : | 1/2 x 1/4 in |
| Length Through Bore | : | 4-3/16 in |
| Maximum Speed | : | 9300 rpm |
- Large bore capacity with O-ring seal design and the most economical gear coupling design
- Curved face teeth (sizes 1 through 7) for up to 1.5 deg static misalignment capability
- Precision drilled flange bolt holes with special body-fitting, grade 5 bolts for a long-lasting piloted flange connection
- Flange interchangeable with all the competitors
- Large gear tooth pitch diameter with high torque capacity
- Close fitting, tight tolerance flange holes and bolt holes
- Field replaceable and standard nitrile rubber O-ring seal
- Grease lubrication required
Instruction/Installation Manual
