Kop-Flex® 1963255 KOP3H FHUB
  1. pin-int

Kop-Flex® 1963255 KOP3H FHUB

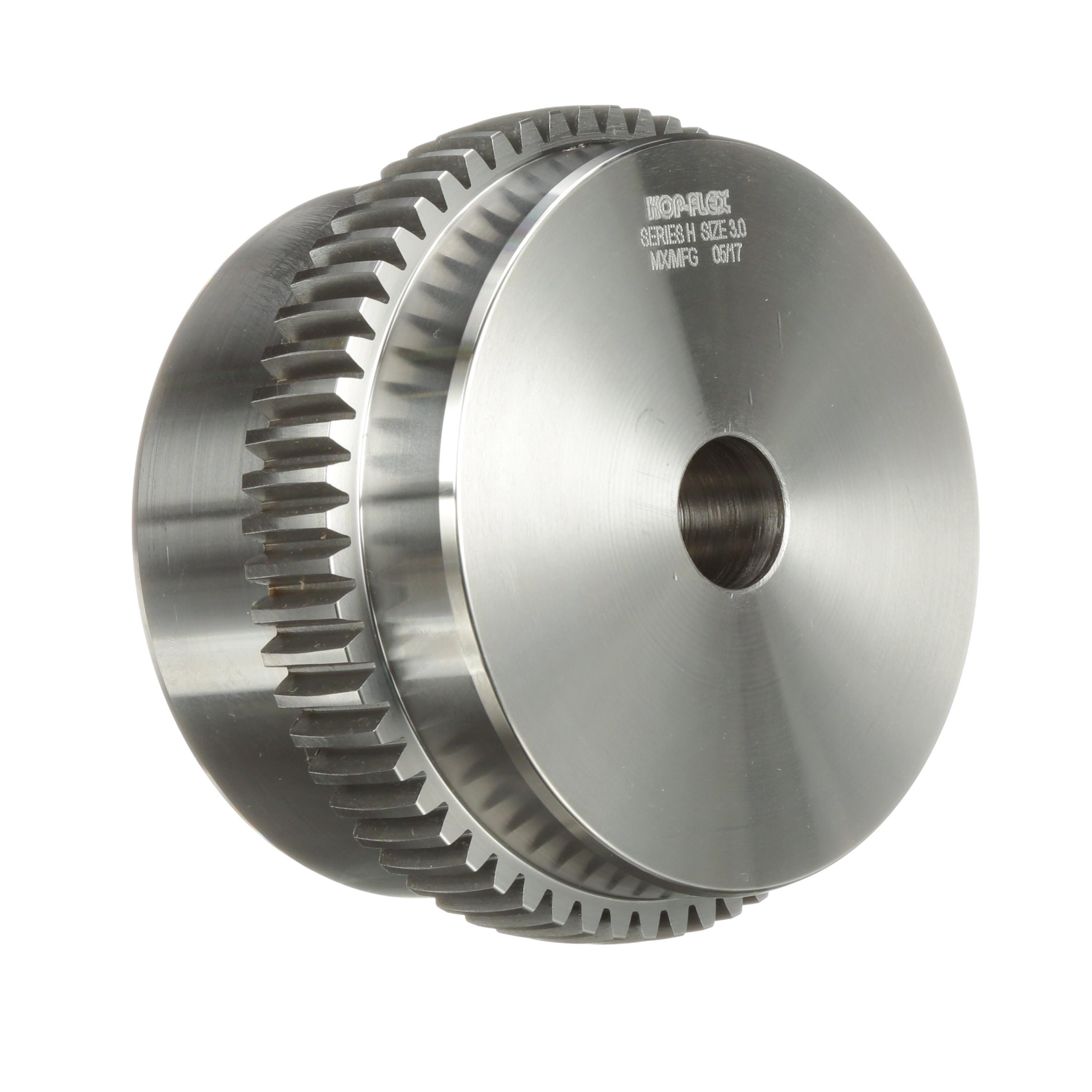

Kop-Flex® 1963255 Flexible Hub, 03, 4 in Dia Bore, 3-19/32 in Length Through Bore, 5-5/8 in Dia Hub, Carbon Steel

  • Manufacturer: Regal Rexnord
  • Brand Name: Kop-Flex®
  • Part Number: KOP3H FHUB
  • Alt Part Number: 3H FHUB
  • MPN: 1963255
  • UPC: 662384403091
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Kop-Flex® Flexible Hub, 03 Coupling, 4 in Bore Dia, 5-5/8 in Hub Dia, 6800 rpm Maximum, 3-19/32 in Length Through Bore, Carbon Steel

Bore Diameter      :      4 in
Coupling Size      :      03
Hub Diameter      :      5-5/8 in
Length Through Bore      :      3-19/32 in
Material      :      Carbon Steel
Maximum Speed      :      6800 rpm
  • Curved face teeth (sizes 1 through 7) for up to 1.5 deg static misalignment capability
  • Precision drilled flange bolt holes with special body-fitting, grade 5 bolts for a long-lasting piloted flange connection
  • NG Evo (gray blue in color) conveyor components made from engineered plastic resin
  • Longest Life
  • Lowest friction
  • Good chemical resistance
  • Less dusting than acetal chains
  • pdfInstruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Kop-Flex_1963560_Installation_Manual.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Kop_Flex_1963222_Specification_Sheet.pdf
