Kop-Flex® 1960632 KOP1 1/2F FHUB
  1. pin-int

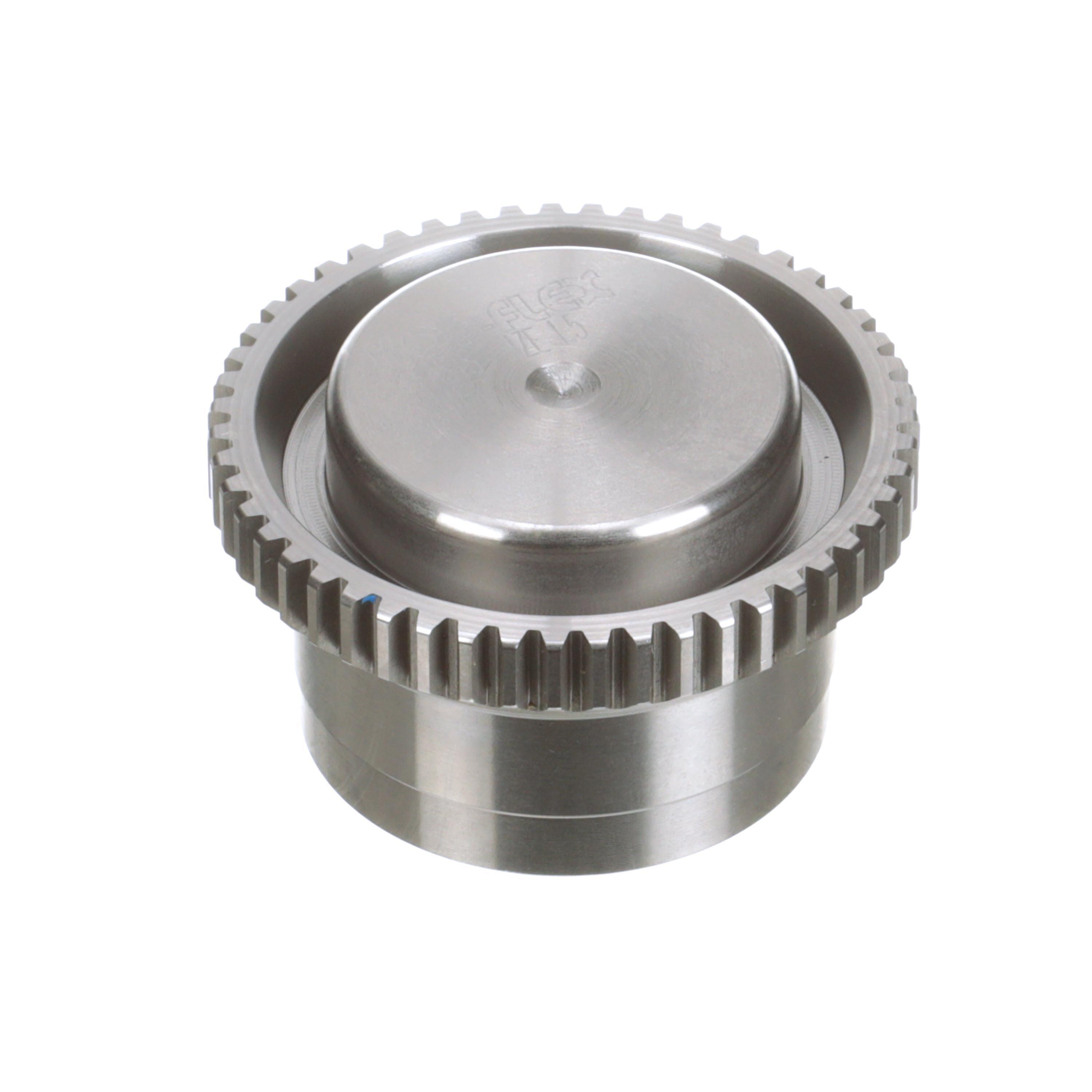

Kop-Flex® 1960632 KOP1 1/2F FHUB

Kop-Flex® 1960632 Flexible Hub, 1-1/2, 1-5/8 in Dia Bore, 6-31/32 in Length Through Bore, 2.1875 in Dia Hub, Carbon Steel

  • Manufacturer: Regal Rexnord
  • Brand Name: Kop-Flex®
  • Part Number: KOP1 1/2F FHUB
  • Alt Part Number: 1 1/2F FHUB
  • MPN: 1960632
  • UPC: 662384115093
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Kop-Flex® Flexible Hub, 1-1/2 Coupling, 1-5/8 in Bore Dia, 2.1875 in Hub Dia, 3/8 x 1/8 in Keyway, 12000 rpm Maximum, 6-31/32 in Length Through Bore, Carbon Steel

Bore Diameter      :      1-5/8 in
Coupling Size      :      1-1/2
Hub Diameter      :      2.1875 in
Keyway Size      :      3/8 x 1/8 in
Length Through Bore      :      6-31/32 in
Material      :      Carbon Steel
Maximum Speed      :      12000 rpm
  • All-metal end ring seal design for maximum service life, industry standard for over 75 years
  • Provides 300% greater lubricant capacity than o-ring style couplings
  • Greater lubricant capacity allows longer periods between scheduled lubrications and longer service life
  • Straight tooth design provides improved load distribution, lower stresses and longer life for the gear teeth
  • Large bore capacity with o-ring seal design
  • The most economical gear coupling design
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Kop_Flex_1960285_Specification_Sheet.pdf
