Kop-Flex® 1960475 KOP3 1/2 EB RHUB
  1. pin-int

Kop-Flex® 1960475 KOP3 1/2 EB RHUB

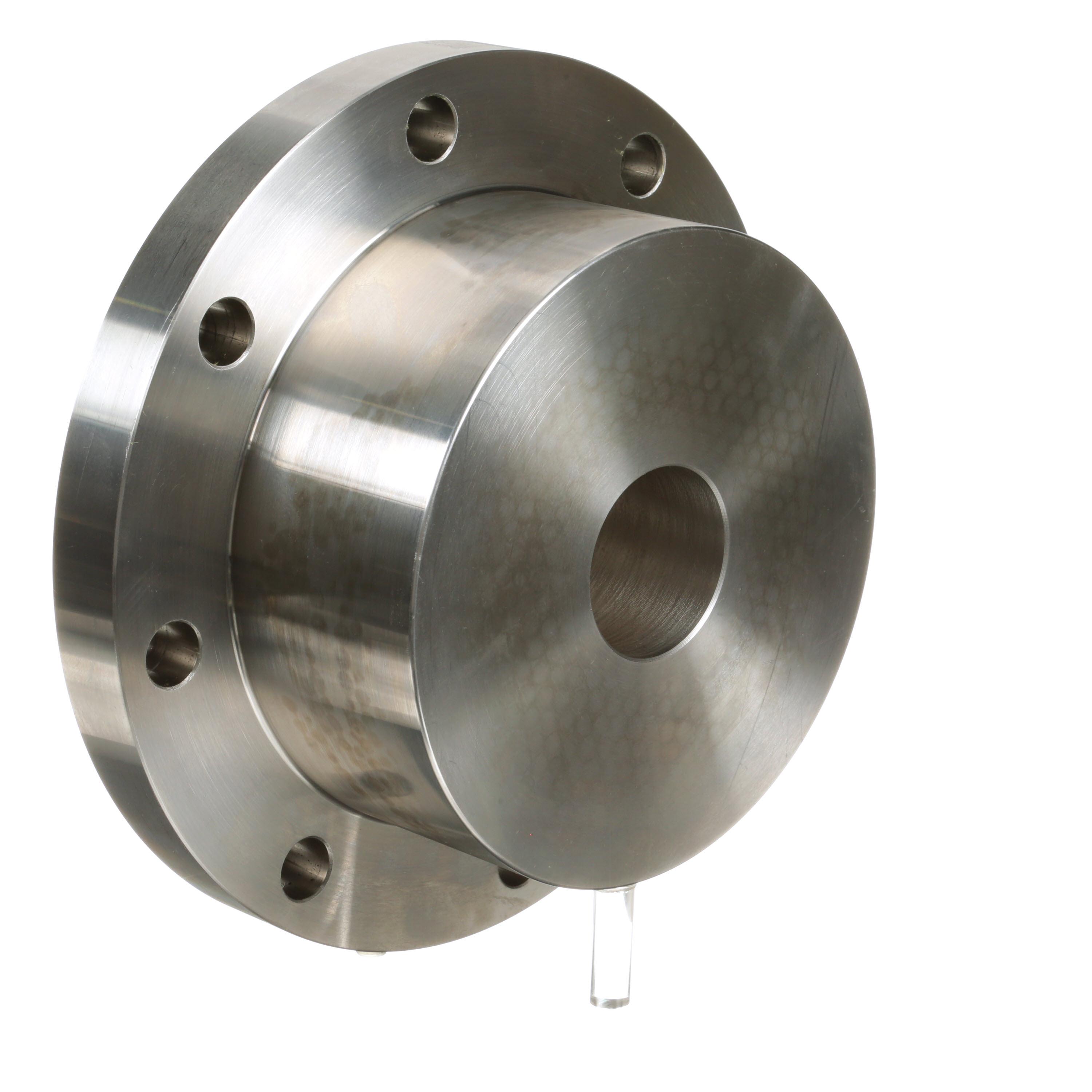

Kop-Flex® 1960475 Rigid Hub, 3-1/2 Coupling, 5-1/2 in Dia Bore, 4-1/32 in Length Through Bore, 7-3/4 in Dia Hub, Steel

  • Manufacturer: Regal Rexnord
  • Brand Name: Kop-Flex®
  • Part Number: KOP3 1/2 EB RHUB
  • Alt Part Number: 3 1/2 EB RHUB
  • MPN: 1960475
  • UPC: 662384110104
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Kop-Flex® Rigid Hub, 3-1/2 Coupling, 5-1/2 in Bore Dia, 7-3/4 in Hub Dia, 4-1/32 in Hub Length, 6000 rpm Maximum, 4-1/32 in Length Through Bore, Steel

Bore Diameter      :      5-1/2 in
Coupling Size      :      3-1/2
Hub Diameter      :      7-3/4 in
Hub Length      :      4-1/32 in
Length Through Bore      :      4-1/32 in
Material      :      Steel
Maximum Speed      :      6000 rpm
  • Large bore capacity with O-ring seal design and the most economical gear coupling design
  • Curved face teeth (sizes 1 through 7) for up to 1.5 deg static misalignment capability
  • Precision drilled flange bolt holes with special body-fitting, grade 5 bolts for a long-lasting piloted flange connection
  • Flange interchangeable with all the competitors
  • Large gear tooth pitch diameter with high torque capacity
  • Field replaceable and standard nitrile rubber O-ring seal
  • Grease lubrication required
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Kop_Flex_1960475_Specification_Sheet.pdf
