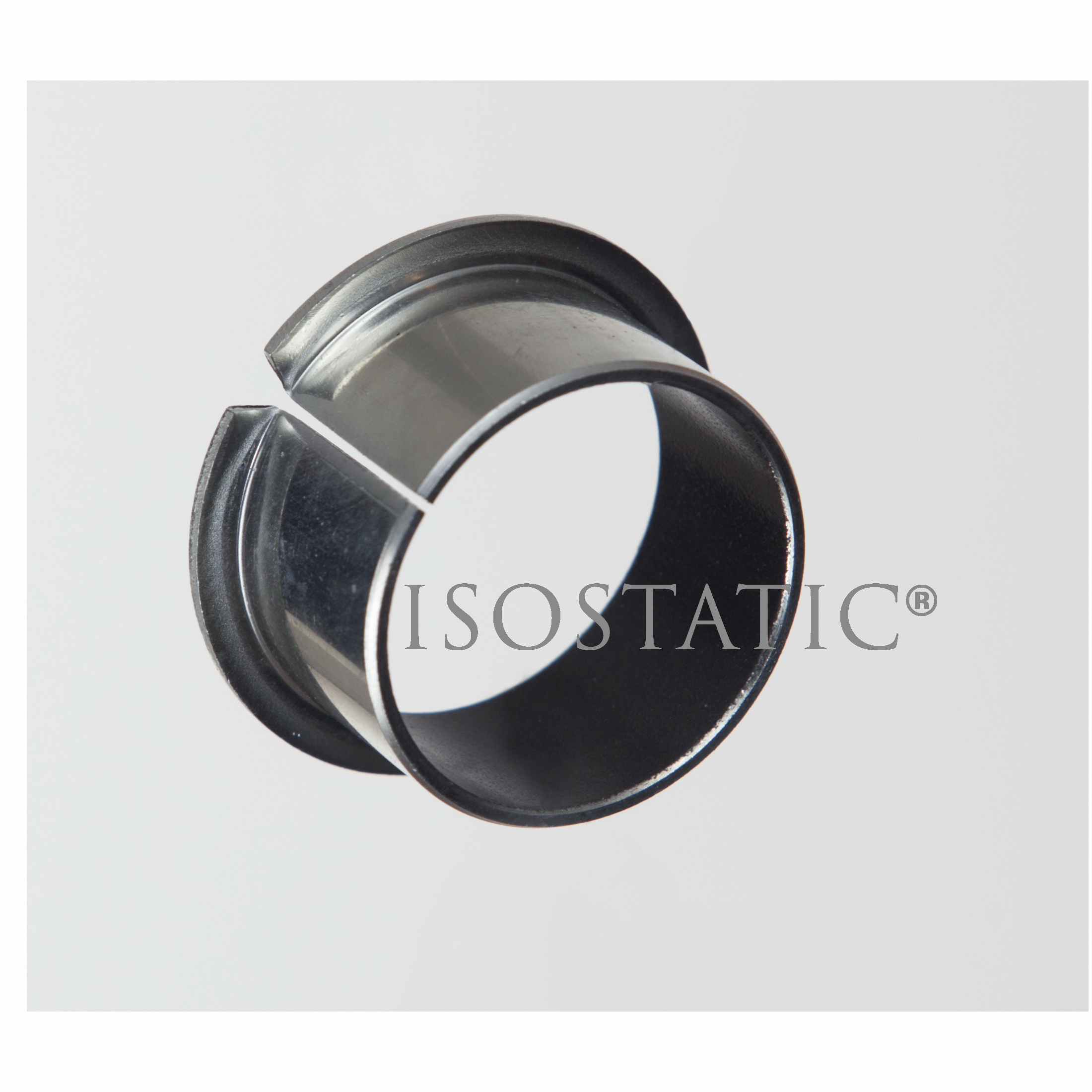

ISOSTATIC™ 702031 ISOFM3016TU
ISOSTATIC™ TU® 702031 Round Bore Flange Bearing, 30 mm Dia Bore, 34 mm OD, 16 mm W, 42 mm Dia Flange
- Manufacturer: Isostatic Industries
- Brand Name: ISOSTATIC™
- Part Number: ISOFM3016TU
- Alt Part Number: FM3016TU
- MPN: 702031
- UPC: 846802071301
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
ISOSTATIC™ TU® Flange Bearing, Round Bore, 30 mm Bore, 34 mm OD, 16 mm Width, 42 mm Diameter Flange, 2 mm Flange Width, -328 to 536 deg F, 36250 psi Maximum, 1900 sfpm Maximum Velocity, 102000 psi/sq-ft/min Maximum PV, Steel-Backed PTFE Lined Bearing
| Bearing Material | : | Steel-Backed PTFE Lined |
| Bore Diameter | : | 30 mm |
| Flange Diameter | : | 42 mm |
| Flange Width | : | 2 mm |
| Maximum PV Rating | : | 102000 psi/sq-ft/min |
| Maximum Pressure | : | 36250 psi |
| Maximum Velocity | : | 1900 sfpm |
| Outside Diameter | : | 34 mm |
| Temperature Rating | : | -328 to 536 deg F |
| Type | : | Round Bore |
| Width | : | 16 mm |
- Standard stock products
- Self-lubricating dry sliding bearing
- A steel-backed composite material comprised of low carbon steel backing for extremely high load capacity, sintered bronze offers optimal heat dispersion, PTFE-lead sliding surface creates a low friction coefficient and allows for a wide temperature range
- Can be used where many liquid lubricants fail, also performs well with lubrication
- Ideal for heavy loads at moderate speeds or light loads at high speeds
