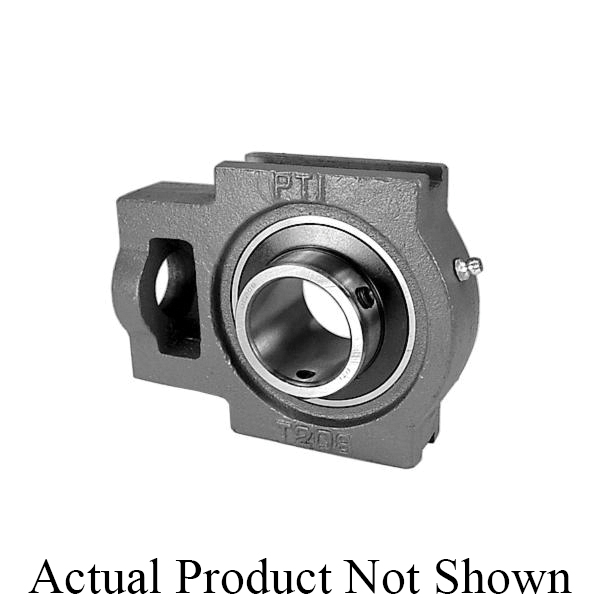

IPTCI Bearings UCT212-60MM IPTUCT212-60MM
IPTCI Bearings UCT212-60MM UCT 200 Normal Duty Non-Expansion Take-Up Bearing Unit, 60 mm Dia Bore, 194 mm L x 60.6 mm W x 146 mm H, 52000 N Dynamic/35590 N Static
- Manufacturer: Solve Industrial Motion Group
- Brand Name: IPTCI Bearings
- Part Number: IPTUCT212-60MM
- MPN: UCT212-60MM
- UPC: 800675163136
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
IPTCI Bearings Take-Up Bearing Unit, Normal Duty Non-Expansion, Series: UCT 200, 60 mm Bore Dia, 194 mm Length, 60.6 mm Width, 146 mm Height, 52000 N Dynamic/35590 N Static, 42 mm Base Thickness, 10 to 200 deg F
| Base Thickness | : | 42 mm |
| Bore Diameter | : | 60 mm |
| Height | : | 146 mm |
| Length | : | 194 mm |
| Load Capacity | : | 52000 N Dynamic/35590 N Static |
| Series | : | UCT 200 |
| Temperature Rating | : | 10 to 200 deg F |
| Type | : | Normal Duty Non-Expansion |
| Width | : | 60.6 mm |
- Item Features 01=Setscrew locking
- Item Features 02=Cast iron housing
Instruction/Installation Manual
