IPTCI Bearings UCPX15-47L3 IPTUCPX15-47L3

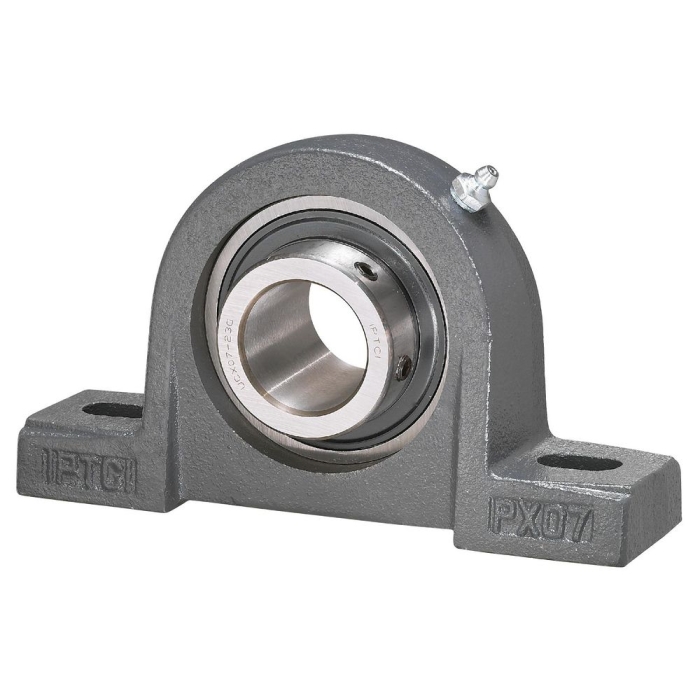

IPTCI Bearings UCPX15-47L3 UCP Medium Duty Pillow Block, 2.93 in Dia Bore, 231.8 mm L Bolt Center-to-Center, 3.5 in Base to Bore Centerline, 298.5 mm OAL x 178.6 mm OAH
- Manufacturer: Solve Industrial Motion Group
- Brand Name: IPTCI Bearings
- Part Number: IPTUCPX15-47L3
- Alt Part Number: 2101043561
- MPN: UCPX15-47L3
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
IPTCI Bearings, UCPX15-47L3, Pillow Block, Medium Duty, Series: UCP, 2.93 in Bore, 231.8 mm Bolt Center-to-Center Length, 3.5 in Base to Bore Centerline, 298.5 mm Overall Length, 76.2 mm Overall Width, 178.6 mm Overall Height, 76.2 mm Base Width, Set Screw Locking Device, Triple Lip Seal, 16000 lb Dynamic/11700 lb Static Load, 248 deg F, Cast Iron
| Base Width | : | 76.2 mm |
| Base to Bore Centerline | : | 3.5 in |
| Bolt Center-to-Center Length | : | 231.8 mm |
| Bore Diameter | : | 2.93 in |
| Load Capacity | : | 16000 lb Dynamic/11700 lb Static |
| Locking Device | : | Set Screw |
| Material | : | Cast Iron |
| Overall Height | : | 178.6 mm |
| Overall Length | : | 298.5 mm |
| Overall Width | : | 76.2 mm |
| Seal Type | : | Triple Lip Seal |
| Series | : | UCP |
| Temperature Rating | : | 248 deg F |
| Type | : | Medium Duty |
