IPTCI Bearings UCFL210-50MML3 IPTUCFL210-50MML3

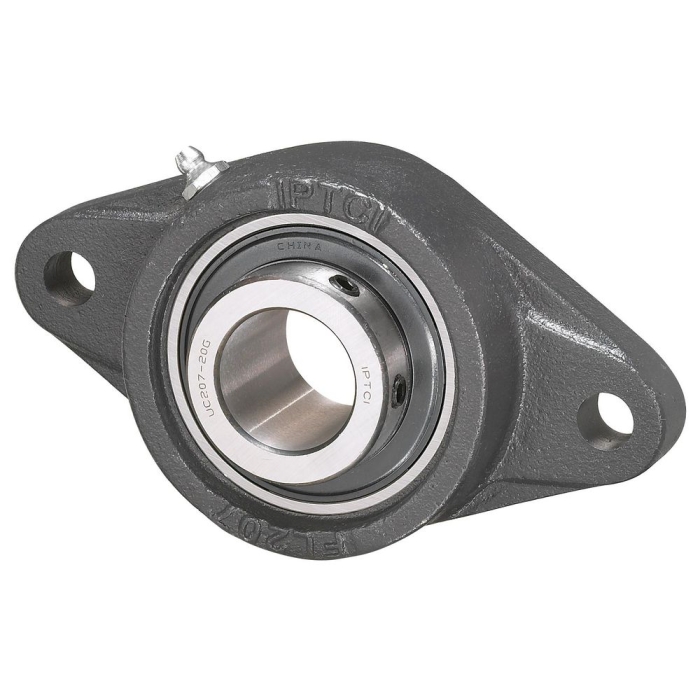

IPTCI Bearings UCFL210-50MML3 UCFL Standard Duty Flange Ball Bearing, 50 mm Dia Bore, 157 mm L Bolt Center-to-Center, 2-Bolt Flange Mount, 197 mm OAL/Dia
- Manufacturer: Solve Industrial Motion Group
- Brand Name: IPTCI Bearings
- Part Number: IPTUCFL210-50MML3
- Alt Part Number: 2101043310
- MPN: UCFL210-50MML3
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
IPTCI Bearings, UCFL210-50MML3, Flange Ball Bearing, Standard Duty, Series: UCFL, 50 mm Bore, 157 mm Bolt Center-to-Center Length, 2-Bolt Flange Mounting, 197 mm Overall Length/Diameter, 55 mm Overall Depth, 115 mm Overall Height, Set Screw Locking Device, Cast Iron Bearing, NBR Seal, 7400 lb Dynamic/4910 lb Static Load, 248 deg F
| Bearing Material | : | Cast Iron |
| Bolt Center-to-Center Length | : | 157 mm |
| Bore Diameter | : | 50 mm |
| Flange Mounting Type | : | 2-Bolt |
| Load Capacity | : | 7400 lb Dynamic/4910 lb Static |
| Locking Device | : | Set Screw |
| Overall Depth | : | 55 mm |
| Overall Height | : | 115 mm |
| Overall Length/Diameter | : | 197 mm |
| Seal Material | : | NBR |
| Series | : | UCFL |
| Temperature Rating | : | 248 deg F |
| Type | : | Standard Duty |
