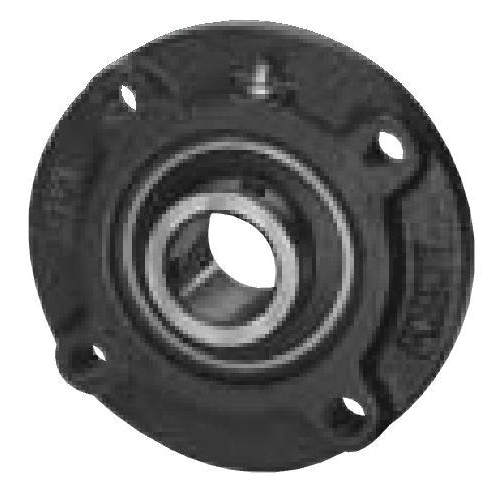

IPTCI Bearings UCFC 208 24 IPTUCFC208-24
IPTCI Bearings UCFC 208 24 Standard Duty Flange Block Bearing With Type-B Seal, 1-1/2 in Dia Bore, 4-23/32 in Dia Bolt Circle, 4-Bolt Piloted Flange Mount, 5-11/16 in OAL/Dia
- Manufacturer: Solve Industrial Motion Group
- Brand Name: IPTCI Bearings
- Part Number: IPTUCFC208-24
- MPN: UCFC 208 24
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/PK
-
Price:
IPTCI Bearings Flange Block Bearing, Standard Duty, Series: UCFC, 1-1/2 in Bore Dia, 4-23/32 in Bolt Circle, 4-Bolt Piloted Flange Mounting, 5-11/16 in Overall Length/Diameter, 5-11/16 in Overall Height, Set Screw Locking Device, 6375 lbf Dynamic Load
| Bolt Circle Diameter | : | 4-23/32 in |
| Bore Diameter | : | 1-1/2 in |
| Flange Mounting Type | : | 4-Bolt Piloted |
| Load Capacity | : | 6375 lbf Dynamic |
| Locking Device | : | Set Screw |
| Overall Height | : | 5-11/16 in |
| Overall Length/Diameter | : | 5-11/16 in |
| Series | : | UCFC |
| Type | : | Standard Duty |

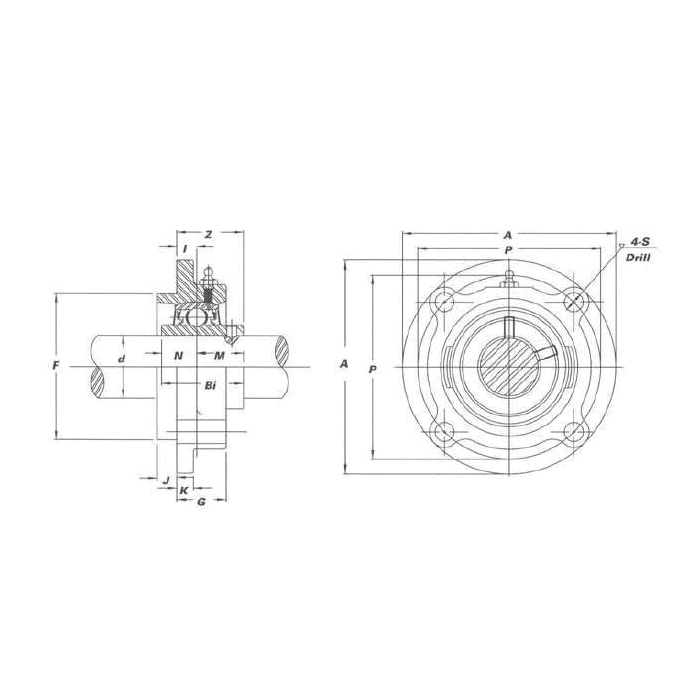

Full Engineering Drawing
