IPTCI Bearings UCF206-18L3 IPTUCF206-18L3

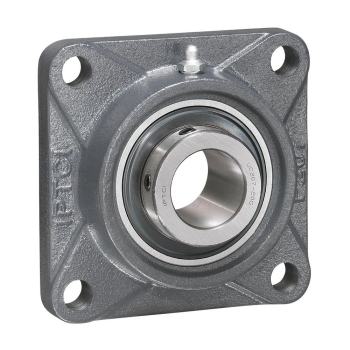

IPTCI Bearings UCF206-18L3 UCF Standard Duty Flange Ball Bearing, 1.12 in Dia Bore, 83 mm L Bolt Center-to-Center, 4-Bolt Flange Mount, 108 mm OAL/Dia
- Manufacturer: Solve Industrial Motion Group
- Brand Name: IPTCI Bearings
- Part Number: IPTUCF206-18L3
- Alt Part Number: 2101042398
- MPN: UCF206-18L3
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
IPTCI Bearings, UCF206-18L3, Flange Ball Bearing, Standard Duty, Series: UCF, 1.12 in Bore, 83 mm Bolt Center-to-Center Length, 4-Bolt Flange Mounting, 108 mm Overall Length/Diameter, 40 mm Overall Depth, 108 mm Overall Height, Set Screw Locking Device, Cast Iron Bearing, NBR Seal, 4200 lb Dynamic/2430 lb Static Load, 248 deg F
| Bearing Material | : | Cast Iron |
| Bolt Center-to-Center Length | : | 83 mm |
| Bore Diameter | : | 1.12 in |
| Flange Mounting Type | : | 4-Bolt |
| Load Capacity | : | 4200 lb Dynamic/2430 lb Static |
| Locking Device | : | Set Screw |
| Overall Depth | : | 40 mm |
| Overall Height | : | 108 mm |
| Overall Length/Diameter | : | 108 mm |
| Seal Material | : | NBR |
| Series | : | UCF |
| Temperature Rating | : | 248 deg F |
| Type | : | Standard Duty |
