IPTCI Bearings UCF 206 19 IPTUCF206-19

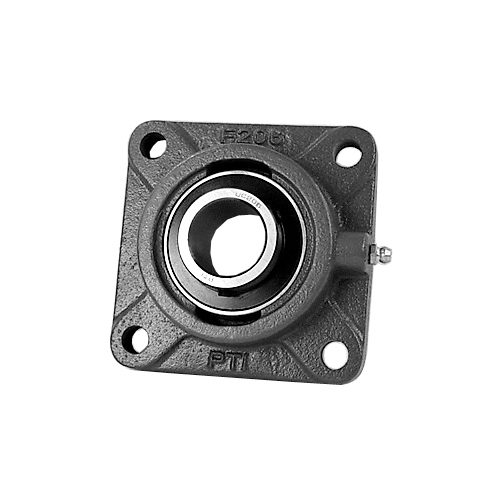

IPTCI Bearings UCF 206 19 Standard Duty Flange Block Bearing With Type-B Seal, 1-3/16 in Dia Bore, 3-1/4 in L Bolt Center-to-Center, 4-Bolt Flange Mount, 4-1/4 in OAL/Dia
- Manufacturer: Solve Industrial Motion Group
- Brand Name: IPTCI Bearings
- Part Number: IPTUCF206-19
- MPN: UCF 206 19
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/PK
-
Price:
IPTCI Bearings Flange Block Bearing, Standard Duty, Series: UCF, 1-3/16 in Bore Dia, 3-1/4 in L Bolt Center-to-Center, 4-Bolt Flange Mounting, 4-1/4 in Overall Length/Diameter, 4-1/4 in Overall Height, Set Screw Locking Device, 4200 lbf Dynamic Load
| Bolt Center-to-Center Length | : | 3-1/4 in |
| Bore Diameter | : | 1-3/16 in |
| Flange Mounting Type | : | 4-Bolt |
| Load Capacity | : | 4200 lbf Dynamic |
| Locking Device | : | Set Screw |
| Overall Height | : | 4-1/4 in |
| Overall Length/Diameter | : | 4-1/4 in |
| Series | : | UCF |
| Type | : | Standard Duty |
- Wide inner race bearing
- Cast iron housing

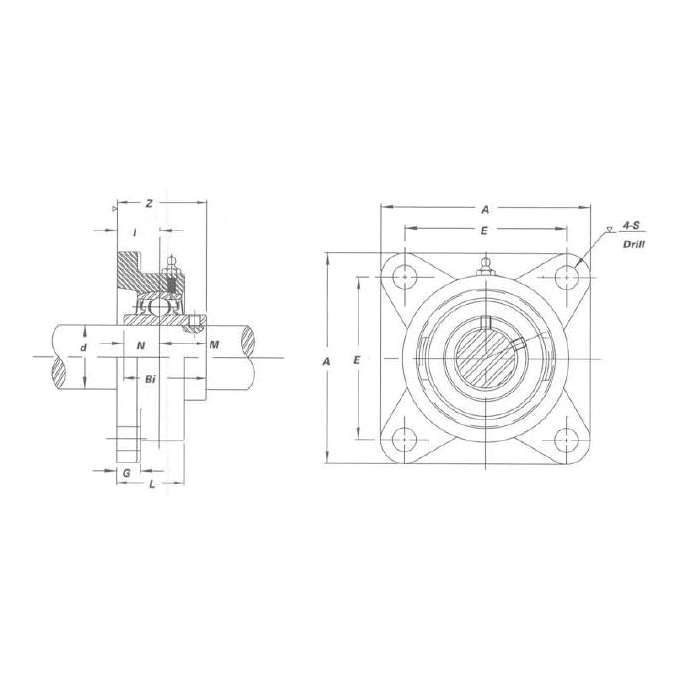

Full Engineering Drawing
