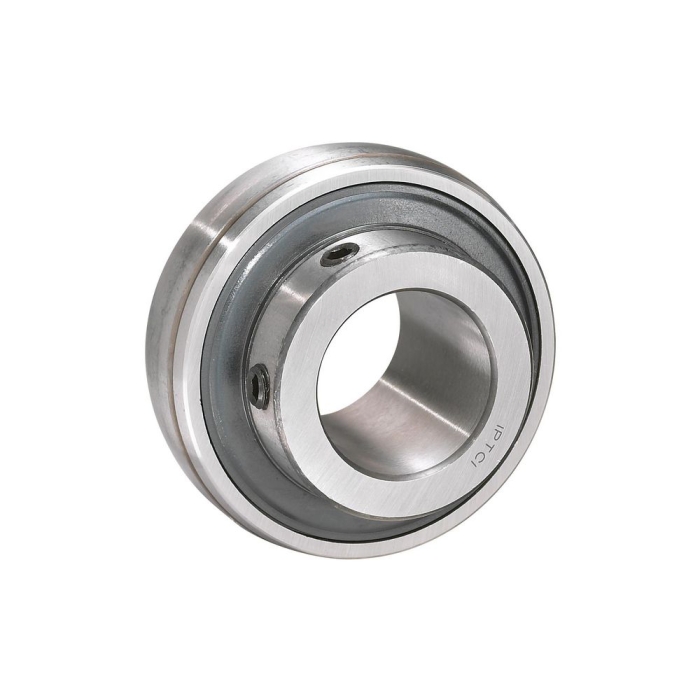

IPTCI Bearings UC206-20L3 IPTUC206-20L3
IPTCI Bearings UC206-20L3 UC Series Standard Duty Insert Ball Bearing, 1.25 in Dia Bore, 62 mm Dia Outside, 4200 lb Dynamic/2430 lb Static Load
- Manufacturer: Solve Industrial Motion Group
- Brand Name: IPTCI Bearings
- Part Number: IPTUC206-20L3
- Alt Part Number: 2101033230
- MPN: UC206-20L3
- UPC: 080067562389
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
UC series insert bearings are Triple-Lip Sealed deep-groove ball bearings made of through-hardened chromium steel and are appropriate for applications with moderate radial loads and light thrust or combination loads. They have a wide inner ring on both sides for increased shaft support and reduced inner-ring tilt for smooth operation. The bearing has a sphered outer surface that allows it to self-align within the housing & compensate for misalignments. It also has an anti-rotation pin in the outer surface that prevents the bearing from free spinning within the housing and ensures smooth performance. ~~ Steel-reinforced molded rubber lip seals with flingers on both sides of the bearing retain the high quality multi-purpose lubricant and deflect contaminants away from the seals. The bearing locks onto the shaft with two cup point setscrews spaced 120 degrees apart for a three-point contact hold. The area around the set screw is specially annealed to prevent cracking when set screws are tightened. Set screw locking is suitable for low to moderate speed applications where the shaft rotates in a single or reversing direction. ~~ Bearings arrive fully lubricated and ready for use, but can also be re-lubricated as needed. Their design includes a groove and oil hole in the outer ring to efficiently channel grease into the bearing during re-lubrication while in an appropriate housing. ~~ These Insert bearings are designed for use in pillow block or flange units, made to AFBMA standards, interchangeable, and can be used in housings produced by most manufacturers.
IPTCI Bearings, UC206-20L3, Insert Ball Bearing, Standard Duty, Series: UC Series, 1.25 in Bore, 62 mm OD, Setscrew Locking Closure, 4200 lb Dynamic/2430 lb Static Load, Steel Bearing, NBR Seal, 248 deg F
| Bearing Material | : | Steel |
| Bore Diameter | : | 1-1/4 in |
| Closure Type | : | Setscrew Locking |
| Load Capacity | : | 4200 lb Dynamic/2430 lb Static |
| Outside Diameter | : | 62 mm |
| Seal Material | : | NBR |
| Series | : | UC Series |
| Temperature Rating | : | 248 deg F |
| Type | : | Standard Duty |
- Wide Inner Ring
- Lubrication Groove with hole on collar side
- Additional oil hole on opposite side
- Anti-Rotation Device
- Triple Lip Seals (L3)
- Pre-Lubricated with quality NLGI2 Bearing Grease
