IPTCI Bearings SUCTPA 206 18 IPTSUCTP206-18

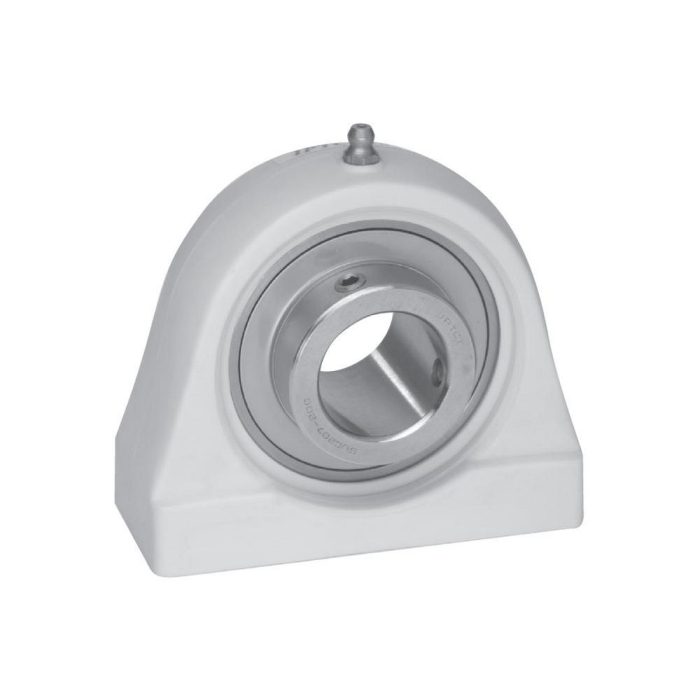

IPTCI Bearings SUCTPA 206 18 Corrosion-Resistant Tapped Base Pillow Block, 1-1/8 in Dia Bore, 3 in L Bolt Center-to-Center, 1-11/16 in Base to Bore Centerline, 4 in OAL x 3-5/16 in OAH
- Manufacturer: Solve Industrial Motion Group
- Brand Name: IPTCI Bearings
- Part Number: IPTSUCTP206-18
- Alt Part Number: 2101041373
- MPN: SUCTPA 206 18
- UPC: 080067569939
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:

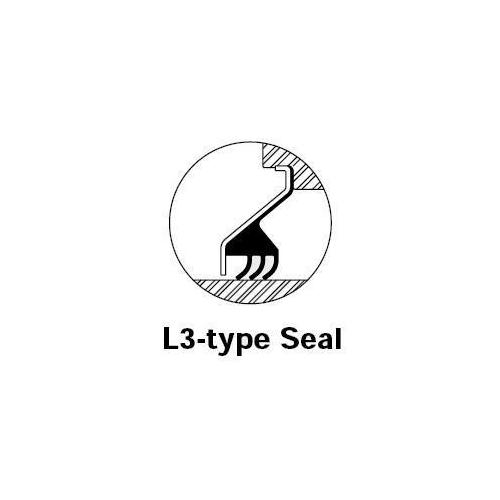

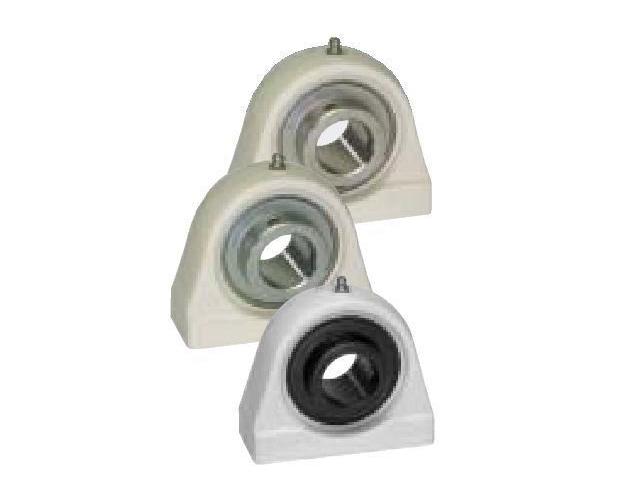

With Set Screw Lock.With Stainless Steel Bearing Inserts. Optional bearing inserts: Stainless Steel - SUCTPA End Caps Available for all styles B-type seal available in all styles and sizes L3-type seal available in SUC units only. Limited sizes. Consult IPTCI for speed limitations.

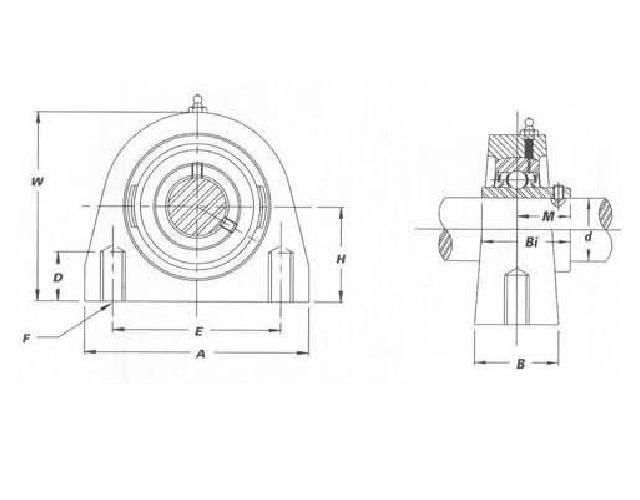

IPTCI Bearings Pillow Block, Corrosion-Resistant Tapped Base, Series: SUCTPA, 1-1/8 in Bore Dia, 3 in L Bolt Center-to-Center, 1-11/16 in Base to Bore Centerline, 4 in Overall Length, 1-11/16 in Overall Width, 3-5/16 in Overall Height, 1-11/16 in Base Width, Set Screw Locking Device, B Seal Seal, Non-Expansion Expansion, Thermoplastic
| Base Width | : | 1-11/16 in |
| Base to Bore Centerline | : | 1-11/16 in |
| Bolt Center-to-Center Length | : | 3 in |
| Bore Diameter | : | 1-1/8 in |
| Expansion Type | : | Non-Expansion |
| Locking Device | : | Set Screw |
| Material | : | Thermoplastic |
| Overall Height | : | 3-5/16 in |
| Overall Length | : | 4 in |
| Overall Width | : | 1-11/16 in |
| Seal Type | : | B Seal |
| Series | : | SUCTPA |
| Type | : | Corrosion-Resistant Tapped Base |
- Pre-Lubricated with quality H-1 Food Grade Grease
- Relubricatable through included Grease Zerk
