IPTCI Bearings SUCTF204-20MML3 IPTSUCTF204-20MML3

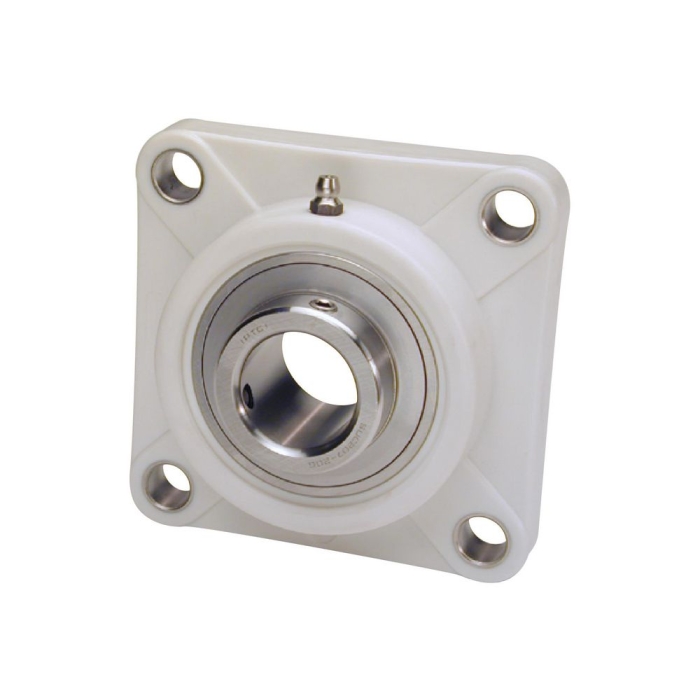

IPTCI Bearings SUCTF204-20MML3 SUCTF Standard Duty Flange Ball Bearing, 20 mm Dia Bore, 64 mm L Bolt Center-to-Center, 4-Bolt Flange Mount, 86 mm OAL/Dia
- Manufacturer: Solve Industrial Motion Group
- Brand Name: IPTCI Bearings
- Part Number: IPTSUCTF204-20MML3
- Alt Part Number: 2101044897
- MPN: SUCTF204-20MML3
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
IPTCI Bearings, SUCTF204-20MML3, Flange Ball Bearing, Standard Duty, Series: SUCTF, 20 mm Bore, 64 mm Bolt Center-to-Center Length, 4-Bolt Flange Mounting, 86 mm Overall Length/Diameter, 37 mm Overall Depth, 86 mm Overall Height, Set Screw Locking Device, Thermoplastic Bearing, NBR Seal, 2440 lb Dynamic/1220 lb Static Load, 250 deg F
| Bearing Material | : | Thermoplastic |
| Bolt Center-to-Center Length | : | 64 mm |
| Bore Diameter | : | 20 mm |
| Flange Mounting Type | : | 4-Bolt |
| Load Capacity | : | 2440 lb Dynamic/1220 lb Static |
| Locking Device | : | Set Screw |
| Overall Depth | : | 37 mm |
| Overall Height | : | 86 mm |
| Overall Length/Diameter | : | 86 mm |
| Seal Material | : | NBR |
| Series | : | SUCTF |
| Temperature Rating | : | 250 deg F |
| Type | : | Standard Duty |
