IPTCI Bearings SUCSF206-20 IPTSUCSF206-20

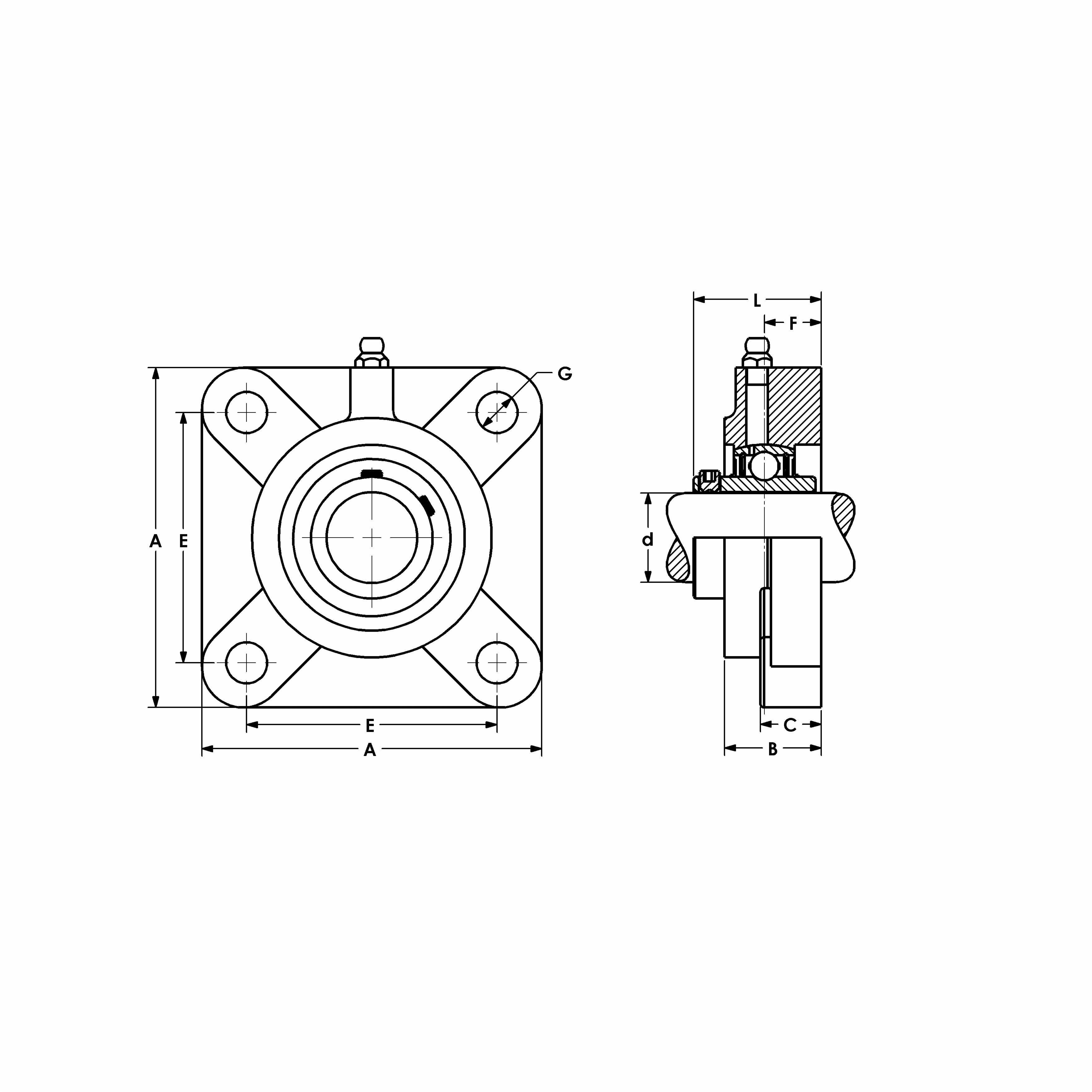

IPTCI Bearings SUCSF206-20 SUCSF 200 Normal Duty Ball Bearing Unit, 1-1/4 in Dia Bore, 3.27 in L Bolt Center-to-Center, 4-Bolt/Solid Base Flange Mount, 4-1/4 in OAL/Dia
- Manufacturer: Solve Industrial Motion Group
- Brand Name: IPTCI Bearings
- Part Number: IPTSUCSF206-20
- Alt Part Number: 2101037487
- MPN: SUCSF206-20
- UPC: 080067566645
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/PK
-
Price:
Typically mounted ball bearings attach to the shaft with set screws, eccentric locking collars, a tapered adapter or a clamping lock collar. PTI stocks all four types. The various inserts fit into any housing type.
IPTCI Bearings Ball Bearing Unit, Normal Duty, Series: SUCSF 200, 1-1/4 in Bore, 3.27 in Bolt Center-to-Center Length, 4-Bolt/Solid Base Flange Mounting, 4-1/4 in Overall Length/Diameter, 1.58 in Overall Depth, 4-1/4 in Overall Height, Set Screw Locking Device, Silicone Rubber Seal, 3700 lb Dynamic/2030 lb Static Load, 5300 rpm Maximum, -10 to 250 deg F
| Bolt Center-to-Center Length | : | 3.27 in |
| Bore Diameter | : | 1-1/4 in |
| Flange Mounting Type | : | 4-Bolt/Solid Base |
| Load Capacity | : | 3700 lb Dynamic/2030 lb Static |
| Locking Device | : | Set Screw |
| Maximum Speed | : | 5300 rpm |
| Overall Depth | : | 1.58 in |
| Overall Height | : | 4-1/4 in |
| Overall Length/Diameter | : | 4-1/4 in |
| Seal Material | : | Silicone Rubber |
| Series | : | SUCSF 200 |
| Temperature Rating | : | -10 to 250 deg F |
| Type | : | Normal Duty |
- Wide inner ring
- Lip seal
- Stainless steel flinger
- H1 lube
- AISI 304 grease fitting
- AISI 304 stainless housing
Specification Sheet
