IPTCI Bearings SUCSF206-19L3 IPTSUCSF206-19L3

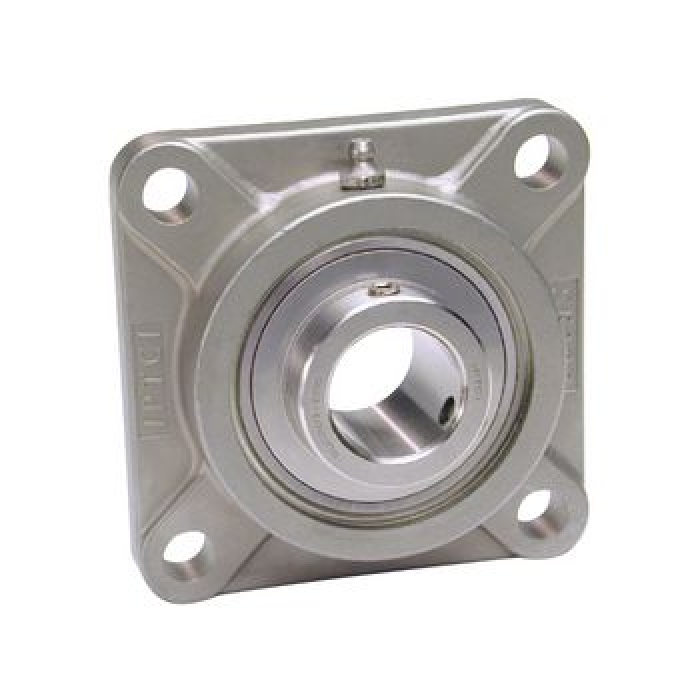

IPTCI Bearings SUCSF206-19L3 SUCSF Standard Duty Flange Ball Bearing, 1.18 in Dia Bore, 83 mm L Bolt Center-to-Center, 4-Bolt Flange Mount, 108 mm OAL/Dia
- Manufacturer: Solve Industrial Motion Group
- Brand Name: IPTCI Bearings
- Part Number: IPTSUCSF206-19L3
- Alt Part Number: 2101044334
- MPN: SUCSF206-19L3
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
IPTCI Bearings, SUCSF206-19L3, Flange Ball Bearing, Standard Duty, Series: SUCSF, 1.18 in Bore, 83 mm Bolt Center-to-Center Length, 4-Bolt Flange Mounting, 108 mm Overall Length/Diameter, 40 mm Overall Depth, 108 mm Overall Height, Set Screw Locking Device, Stainless Steel Bearing, NBR Seal, 3710 lb Dynamic/2020 lb Static Load, 250 deg F
| Bearing Material | : | Stainless Steel |
| Bolt Center-to-Center Length | : | 83 mm |
| Bore Diameter | : | 1.18 in |
| Flange Mounting Type | : | 4-Bolt |
| Load Capacity | : | 3710 lb Dynamic/2020 lb Static |
| Locking Device | : | Set Screw |
| Overall Depth | : | 40 mm |
| Overall Height | : | 108 mm |
| Overall Length/Diameter | : | 108 mm |
| Seal Material | : | NBR |
| Series | : | SUCSF |
| Temperature Rating | : | 250 deg F |
| Type | : | Standard Duty |
