IPTCI Bearings SUCNPP 207 22 IPTSUCNPP207-22

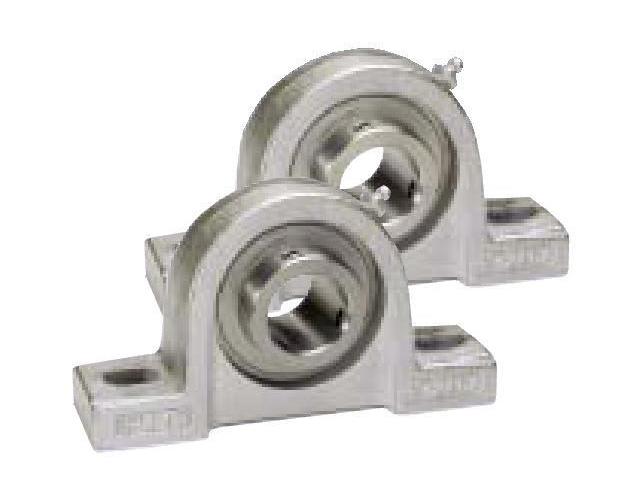

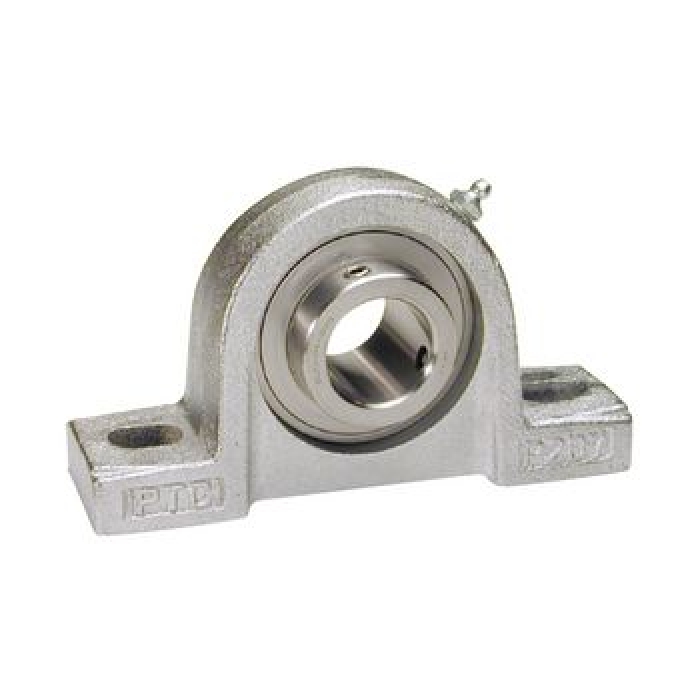

IPTCI Bearings SUCNPP 207 22 Corrosion-Resistant High Shaft Height Pillow Block With SUC 207-22 Stainless Steel Bearing Insert, 1-3/8 in Dia Bore, 5 in L Bolt Center-to-Center, 1-7/8 in Base to Bore Centerline, 6-17/32 in OAL x 3-11/16 in OAH
- Manufacturer: Solve Industrial Motion Group
- Brand Name: IPTCI Bearings
- Part Number: IPTSUCNPP207-22
- Alt Part Number: 2101044021
- MPN: SUCNPP 207 22
- UPC: 080067572579
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
With Stainless Steel Bearing Inserts. With optional bearing inserts: Stainless Steel - SUCNPP High shaft height B-type seals Available with locking collar bearings. Please ask.
IPTCI Bearings Pillow Block, Corrosion-Resistant High Shaft Height, Series: SUCNPP, 1-3/8 in Bore Dia, 5 in L Bolt Center-to-Center, 1-7/8 in Base to Bore Centerline, 6-17/32 in Overall Length, 1-29/32 in Overall Width, 3-11/16 in Overall Height, 1-29/32 in Base Width, Set Screw Locking Device, B Seal Seal, Non-Expansion Expansion, Cast Iron, Nickel Plated
| Base Width | : | 1-29/32 in |
| Base to Bore Centerline | : | 1-7/8 in |
| Bolt Center-to-Center Length | : | 5 in |
| Bore Diameter | : | 1-3/8 in |
| Expansion Type | : | Non-Expansion |
| Finish | : | Nickel Plated |
| Locking Device | : | Set Screw |
| Material | : | Cast Iron |
| Overall Height | : | 3-11/16 in |
| Overall Length | : | 6-17/32 in |
| Overall Width | : | 1-29/32 in |
| Seal Type | : | B Seal |
| Series | : | SUCNPP |
| Type | : | Corrosion-Resistant High Shaft Height |
- Pre-Lubricated with quality H-1 Food Grade Grease
- Relubricatable through included Grease Zerk

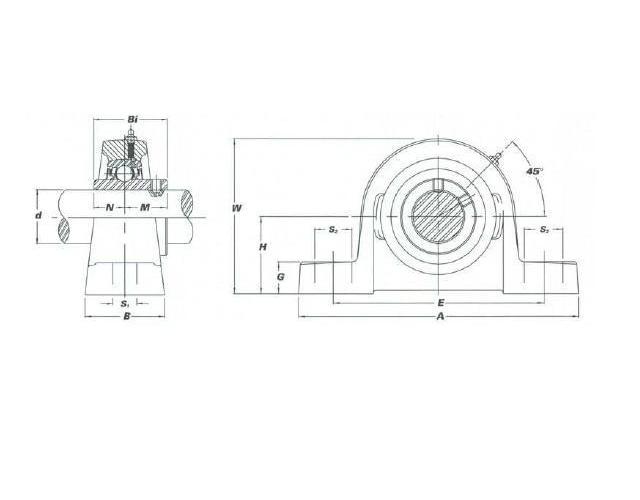

Specification Sheet
