IPTCI Bearings SUCNPFL 204 12 IPTSUCNPFL204-12
  1. pin-int

IPTCI Bearings SUCNPFL 204 12 IPTSUCNPFL204-12

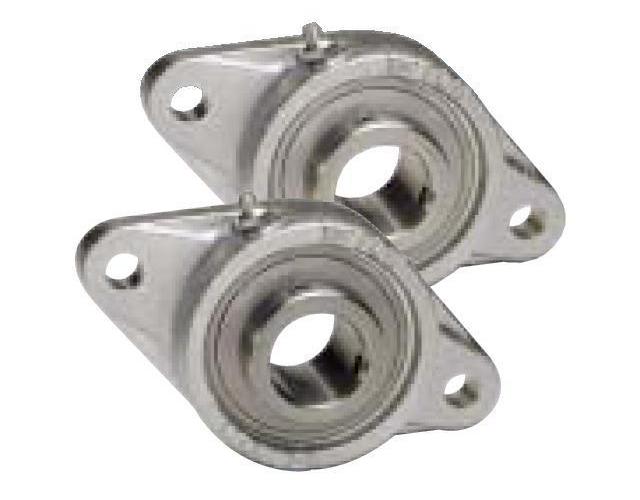

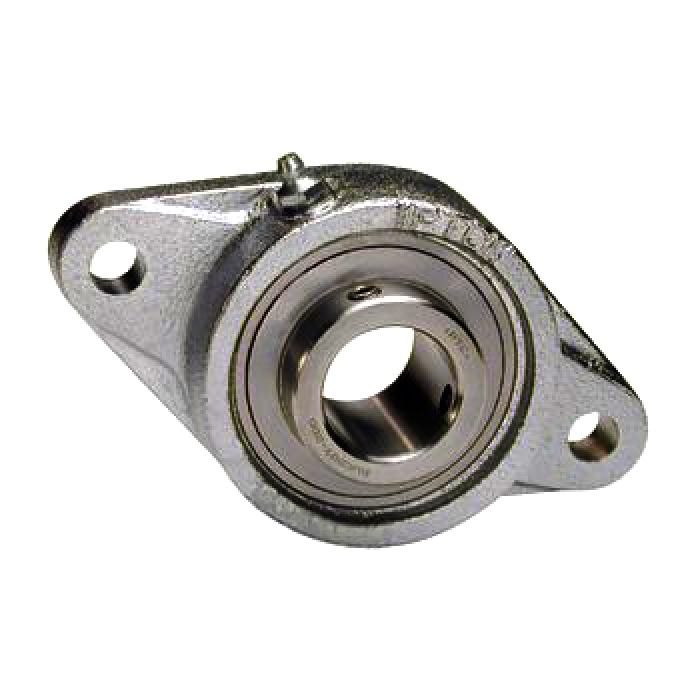

IPTCI Bearings SUCNPFL 204 12 Corrosion-Resistant Flange Block Bearing With SUC 204-12 Stainless Steel Bearing Insert and Type-B Seal, 3/4 in Dia Bore, 3-17/32 in L Bolt Center-to-Center, 2-Bolt Flange Mount, 4-7/16 in OAL/Dia

  • Manufacturer: Solve Industrial Motion Group
  • Brand Name: IPTCI Bearings
  • Part Number: IPTSUCNPFL204-12
  • Alt Part Number: 2101041299
  • MPN: SUCNPFL 204 12
  • UPC: 080067569871
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

With Stainless Steel Bearing Inserts. With optional bearing inserts: Stainless Steel - SUCNPFL B-type seals Available with locking collar bearings. Please ask.

IPTCI Bearings Flange Block Bearing, Corrosion-Resistant, Series: SUCNPFL, 3/4 in Bore Dia, 3-17/32 in L Bolt Center-to-Center, 2-Bolt Flange Mounting, 4-7/16 in Overall Length/Diameter, 2-3/8 in Overall Height, Set Screw Locking Device, Nickel Plated

Bolt Center-to-Center Length      :      3-17/32 in
Bore Diameter      :      3/4 in
Finish      :      Nickel Plated
Flange Mounting Type      :      2-Bolt
Locking Device      :      Set Screw
Overall Height      :      2-3/8 in
Overall Length/Diameter      :      4-7/16 in
Series      :      SUCNPFL
Type      :      Corrosion-Resistant
  • Cast iron housing
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/PTI_SARFB20412G_Catalog.pdf
  • pdfInstruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/PTI_SARFB20412G_Manual.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/PTI_SUCNPFL2018_Specification_Sheet.pdf

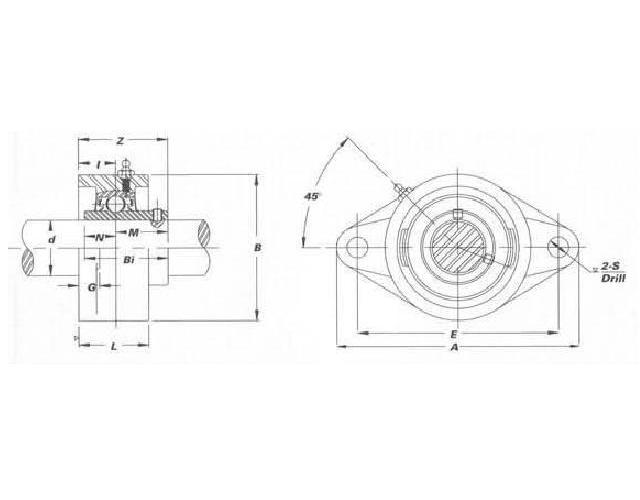

  • pdfFull Engineering Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/PTI_SUCNPFL20412_Full_Engineering_Drawing.pdf
  • linkVIDEO LINK https://youtu.be/pWhSAr3Ii1A
