IPTCI Bearings SUCNPFB 206 19 IPTSUCNPFB206-19

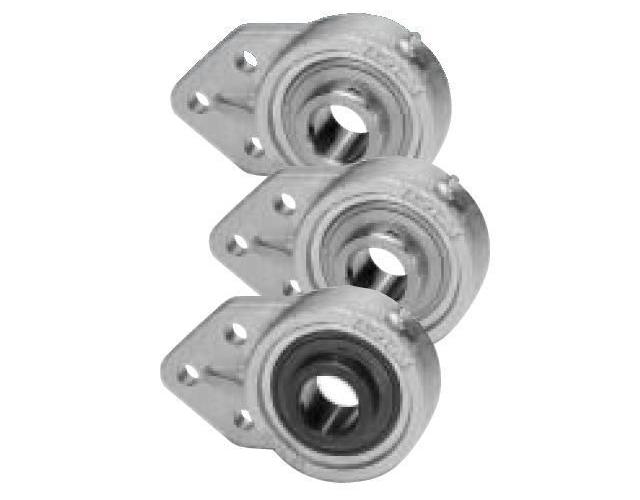

SUCNPFB Series Standard Duty 3-Bolt Flange ball bearing unit features a Nickel-Plated Cast-Iron Housing and a Stainless-Steel ball bearing insert with flinger seals and set screw lock. The housing is made of cast iron for rigidity and vibration dampening and has a solid base for mounting stability. Nickel plating provides moderate corrosion resistance. The housing has a solid base for mounting stability, and to eliminate crevices that act as entrapment points in wash-down applications ~~ The double-sealed, deep-groove ball bearing insert is made of 440 grade Stainless and is appropriate for applications with moderate radial loads and light thrust or combination loads. It has a wide inner ring on both sides for increased shaft support and reduced inner-ring tilt for smooth operation. The insert bearing has a sphered outer surface that allows it to self-align within the housing & compensate for misalignments. It also has an anti-rotation pin on the outer surface that prevents the bearings from spinning within the housing and ensures smooth performance. 300 Series Stainless Steel-reinforced molded rubber lip seals with flingers on both sides of the bearing retain the high-quality Food Grade multi-purpose lubricant and deflect contaminants away from the seals. ~~ The bearing locks onto the shaft with two set screws spaced 120 degrees apart for a three-point contact hold. Set screw locking is suitable for low to moderate speed applications where the shaft rotates in a single or reversing direction. The unit is equipped with a grease fitting on the housing’s outer surface for reapplying lubricant, and the insert bearing has a groove and oil hole in the outer ring to efficiently channel grease into the bearing during re-lubrication. ~~ Stainless Steel / Nickel Plated Ball Bearing Pillow Block units are suitable for use in industrial and commercial applications that require corrosion resistance due to frequent wash-downs or are operating in a caustic environments such as food processing equipment and machinery, and pharmaceutical producing / processing equipment, among many others.

IPTCI Bearings Flange Bracket Bearing, Series: SUCNPFB, 1-3/16 in Bore Dia, 1-7/8 in L Bolt Center-to-Center, 3-Bolt Flange Mounting, 3-1/4 in Overall Length/Diameter, 5-3/8 in Overall Height, Set Screw Locking Device, Nickel Plated

• Pre-Lubricated with quality H-1 Food Grade Grease
• Relubricatable through included Grease Zerk

• Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/PTI_SUCNPFB2018_Specification_Sheet.pdf

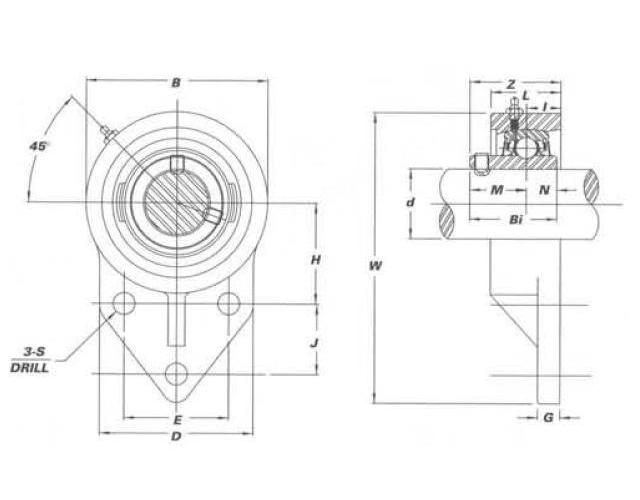

• Full Engineering Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/PTI_SUCNPFB20619_Full_Engineering_Drawing.pdf
• VIDEO LINK https://youtu.be/pWhSAr3Ii1A
