IPTCI Bearings SNASP209-28L3 IPTSNASP209-28L3

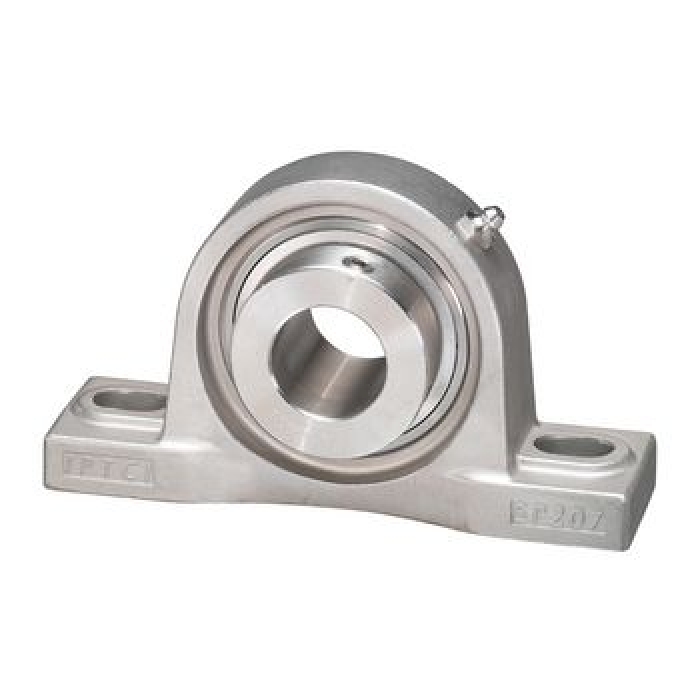

IPTCI Bearings SNASP209-28L3 SNASP High Temperature Pillow Block, 1.75 in Dia Bore, 146 mm L Bolt Center-to-Center, 2.12 in Base to Bore Centerline, 190 mm OAL x 109 mm OAH
- Manufacturer: Solve Industrial Motion Group
- Brand Name: IPTCI Bearings
- Part Number: IPTSNASP209-28L3
- Alt Part Number: 2101044629
- MPN: SNASP209-28L3
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
IPTCI Bearings, SNASP209-28L3, Pillow Block, High Temperature, Series: SNASP, 1.75 in Bore, 146 mm Bolt Center-to-Center Length, 2.12 in Base to Bore Centerline, 190 mm Overall Length, 56 mm Overall Width, 109 mm Overall Height, 56 mm Base Width, Eccentric Collar Locking Device, Triple Lip Seal, 6230 lb Dynamic/3680 lb Static Load, 250 deg F, Stainless Steel
| Base Width | : | 56 mm |
| Base to Bore Centerline | : | 2.12 in |
| Bolt Center-to-Center Length | : | 146 mm |
| Bore Diameter | : | 1.75 in |
| Load Capacity | : | 6230 lb Dynamic/3680 lb Static |
| Locking Device | : | Eccentric Collar |
| Material | : | Stainless Steel |
| Overall Height | : | 109 mm |
| Overall Length | : | 190 mm |
| Overall Width | : | 56 mm |
| Seal Type | : | Triple Lip Seal |
| Series | : | SNASP |
| Temperature Rating | : | 250 deg F |
| Type | : | High Temperature |
Specification Sheet
