IPTCI Bearings SBPL 205 25MM G IPTSBPL205-25MMG

SBPK Series Low Shaft Height Light Duty Pillow Block ball bearing unit features a cast iron housing and a ball bearing insert with set screw lock. The housing is made of cast iron for rigidity and vibration dampening, and has a solid base for mounting stability. The double-sealed, deep-groove ball bearing insert is made of through-hardened chromium steel and is appropriate for applications with moderate radial loads and light thrust or combination loads. The insert bearing has a sphered outer surface that allows it to self-align within the housing & compensate for misalignments. Steel-reinforced molded rubber lip seals on both sides of the bearing retain the high quality multi-purpose lubricant and deflect contaminants away from the seals. ~~ The bearing locks onto the shaft with two set screws spaced 120 degrees apart for a three-point contact hold. Set screw locking is suitable for low to moderate speed applications where the shaft rotates in a single or reversing direction. The unit is equipped with a grease fitting on the housing’s outer surface for reapplying lubricant, and the insert bearing has a groove and oil hole in the outer ring to efficiently channel grease into the bearing during re-lubrication. ~~ Ball Bearing Pillow Block units are suitable for use in industrial and commercial applications including industrial machinery, conveyors, fans/blowers, agricultural equipment, construction machinery, exercise equipment, and food processing equipment, among many others.

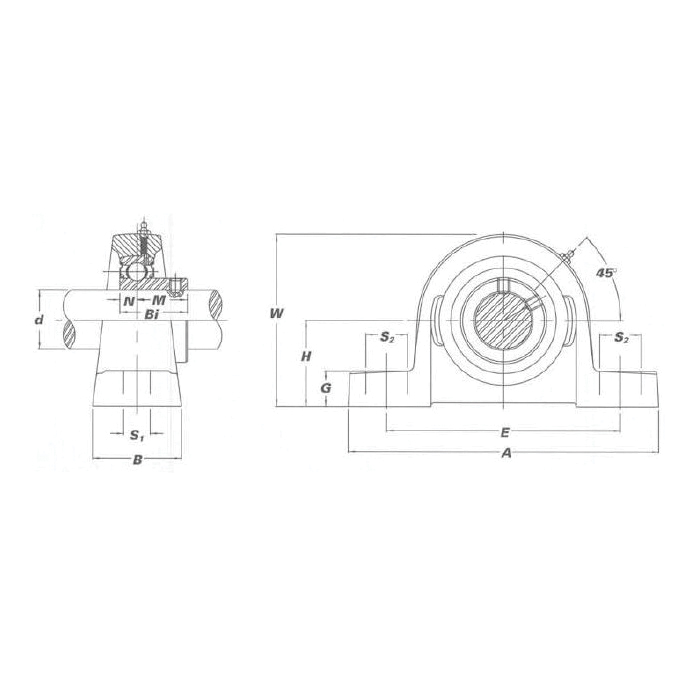

IPTCI Bearings Pillow Block, Low Shaft Height Relubricatable Standard, Series: SBPL, 25 mm Bore Dia, 4-1/8 in L Bolt Center-to-Center, 1-5/16 in Base to Bore Centerline, 5-1/2 in Overall Length, 1-1/2 in Overall Width, 2-45/64 in Overall Height, 1-1/2 in Base Width, Set Screw Locking Device, K Seal Seal, Non-Expansion Expansion, 3010 lbf Dynamic Load, Cast Iron

• Narrow inner race bearing

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/PTI_SARFB20412G_Catalog.pdf
• Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/PTI_SARFB20412G_Manual.pdf
• Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/PTI_SBPL2018G_Specification_Sheet.pdf
• Full Engineering Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/PTI_SBPL20525MMG_Full_Engineering_Drawing.pdf
