IPTCI Bearings SBLP 206 20 G IPTSBLP206-20
  1. pin-int

IPTCI Bearings SBLP 206 20 G IPTSBLP206-20

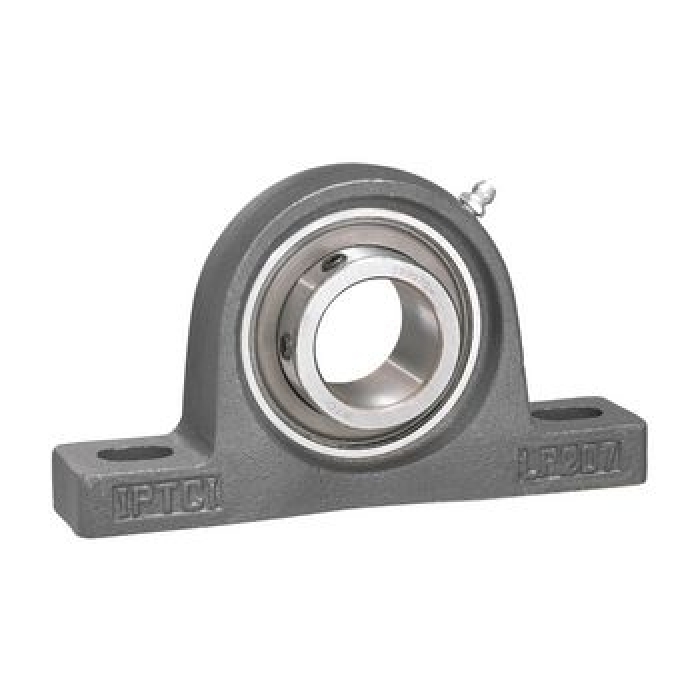

IPTCI Bearings SBLP 206 20 G Light Duty Relubricatable Standard Pillow Block, 1-1/4 in Dia Bore, 4-11/16 in L Bolt Center-to-Center, 1-11/16 in Base to Bore Centerline, 6-5/32 in OAL x 3-9/32 in OAH

  • Manufacturer: Solve Industrial Motion Group
  • Brand Name: IPTCI Bearings
  • Part Number: IPTSBLP206-20
  • MPN: SBLP 206 20 G
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

IPTCI Bearings Pillow Block, Light Duty Relubricatable Standard, Series: SBLP, 1-1/4 in Bore Dia, 4-11/16 in L Bolt Center-to-Center, 1-11/16 in Base to Bore Centerline, 6-5/32 in Overall Length, 1-5/16 in Overall Width, 3-9/32 in Overall Height, 1-5/16 in Base Width, Set Screw Locking Device, K Seal Seal, Non-Expansion Expansion, 4200 lbf Dynamic Load, Cast Iron

Base Width      :      1-5/16 in
Base to Bore Centerline      :      1-11/16 in
Bolt Center-to-Center Length      :      4-11/16 in
Bore Diameter      :      1-1/4 in
Expansion Type      :      Non-Expansion
Load Capacity      :      4200 lbf Dynamic
Locking Device      :      Set Screw
Material      :      Cast Iron
Overall Height      :      3-9/32 in
Overall Length      :      6-5/32 in
Overall Width      :      1-5/16 in
Seal Type      :      K Seal
Series      :      SBLP
Type      :      Light Duty Relubricatable Standard
  • Item Features 01=Narrow inner race bearing
