IPTCI Bearings SBLF 204 12 G H4 IPTSBLF204-12GH4
IPTCI Bearings SBLF 204 12 G H4 Relubricatable Standard Duty Flange Block Bearing With Type-K Seal, 3/4 in Dia Bore, 2-13/16 in L Bolt Center-to-Center, 2-Bolt Flange Mount, 3-17/32 in OAL/Dia
- Manufacturer: Solve Industrial Motion Group
- Brand Name: IPTCI Bearings
- Part Number: IPTSBLF204-12GH4
- MPN: SBLF 204 12 G H4
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
IPTCI Bearings Flange Block Bearing, Relubricatable Standard Duty, Series: SBLF, 3/4 in Bore Dia, 2-13/16 in L Bolt Center-to-Center, 2-Bolt Flange Mounting, 3-17/32 in Overall Length/Diameter, 2-13/32 in Overall Height, Set Screw Locking Device
| Bolt Center-to-Center Length | : | 2-13/16 in |
| Bore Diameter | : | 3/4 in |
| Flange Mounting Type | : | 2-Bolt |
| Locking Device | : | Set Screw |
| Overall Height | : | 2-13/32 in |
| Overall Length/Diameter | : | 3-17/32 in |
| Series | : | SBLF |
| Type | : | Relubricatable Standard Duty |
- Item Features 01=Round/square bolt holes
- Item Features 02=Narrow inner race bearing
- Item Features 03=Ductile iron housing

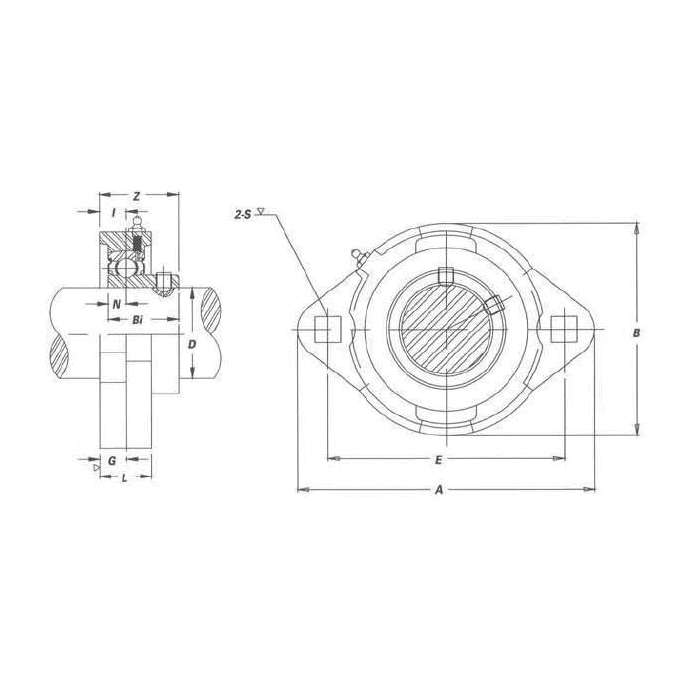

Full Engineering Drawing
