IPTCI Bearings SAP 201 8 G IPTSAP201-8G

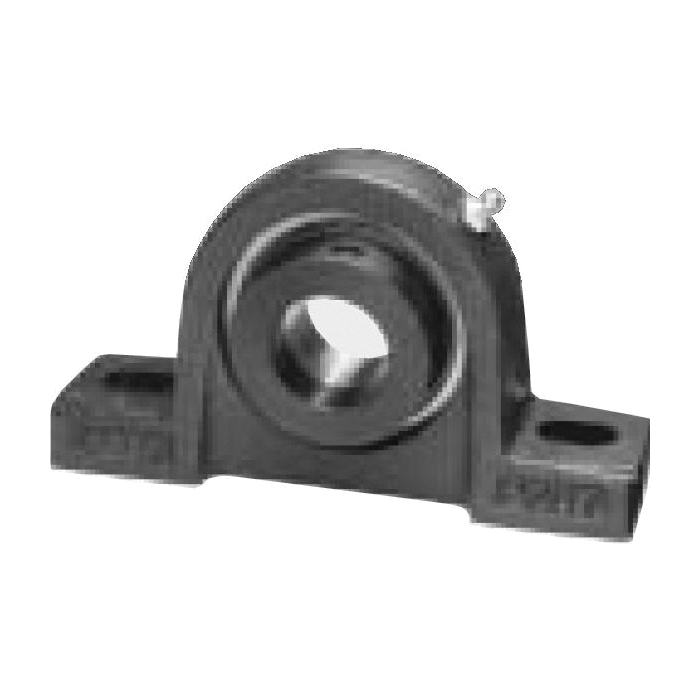

IPTCI Bearings SAP 201 8 G High Shaft Height Relubricatable Standard Pillow Block, 1/2 in Dia Bore, 3-5/8 in L Bolt Center-to-Center, 1-3/16 in Base to Bore Centerline, 4-7/8 in OAL x 2-23/64 in OAH
- Manufacturer: Solve Industrial Motion Group
- Brand Name: IPTCI Bearings
- Part Number: IPTSAP201-8G
- MPN: SAP 201 8 G
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/PK
-
Price:
IPTCI Bearings Pillow Block, High Shaft Height Relubricatable Standard, Series: SAP, 1/2 in Bore Dia, 3-5/8 in L Bolt Center-to-Center, 1-3/16 in Base to Bore Centerline, 4-7/8 in Overall Length, 1-7/16 in Overall Width, 2-23/64 in Overall Height, 1-7/16 in Base Width, Eccentric Collar Locking Device, K Seal Seal, Non-Expansion Expansion, 2740 lbf Dynamic Load, Cast Iron
| Base Width | : | 1-7/16 in |
| Base to Bore Centerline | : | 1-3/16 in |
| Bolt Center-to-Center Length | : | 3-5/8 in |
| Bore Diameter | : | 1/2 in |
| Expansion Type | : | Non-Expansion |
| Load Capacity | : | 2740 lbf Dynamic |
| Locking Device | : | Eccentric Collar |
| Material | : | Cast Iron |
| Overall Height | : | 2-23/64 in |
| Overall Length | : | 4-7/8 in |
| Overall Width | : | 1-7/16 in |
| Seal Type | : | K Seal |
| Series | : | SAP |
| Type | : | High Shaft Height Relubricatable Standard |
- Item Features 01=Narrow inner race bearing

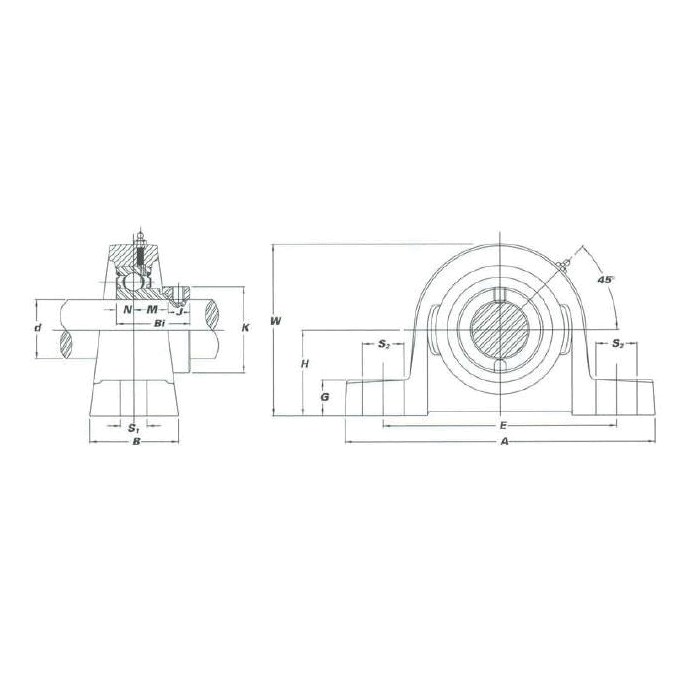

Full Engineering Drawing
