IPTCI Bearings SALF 206 20 G IPTSALF206-20G

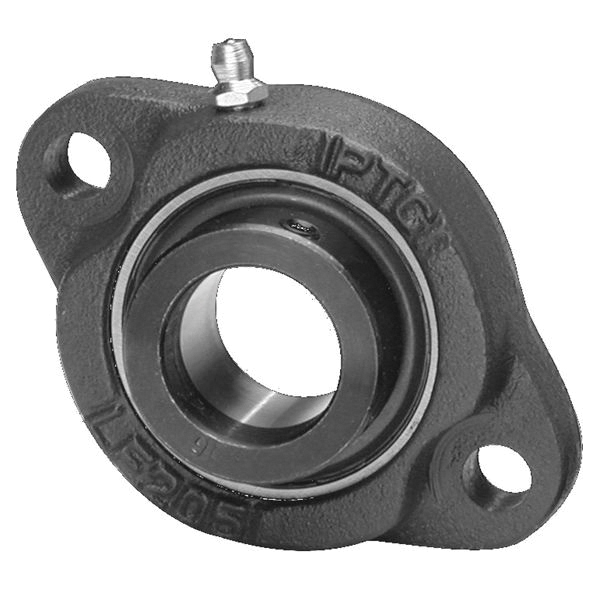

IPTCI Bearings SALF 206 20 G Relubricatable Standard Duty Flange Block Bearing With Type-K Seal, 1-1/4 in Dia Bore, 3-9/16 in L Bolt Center-to-Center, 2-Bolt Flange Mount, 4-7/16 in OAL/Dia
- Manufacturer: Solve Industrial Motion Group
- Brand Name: IPTCI Bearings
- Part Number: IPTSALF206-20G
- MPN: SALF 206 20 G
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/PK
-
Price:
IPTCI Bearings Flange Block Bearing, Relubricatable Standard Duty, Series: SALF, 1-1/4 in Bore Dia, 3-9/16 in L Bolt Center-to-Center, 2-Bolt Flange Mounting, 4-7/16 in Overall Length/Diameter, 3 in Overall Height, Eccentric Collar Locking Device
| Bolt Center-to-Center Length | : | 3-9/16 in |
| Bore Diameter | : | 1-1/4 in |
| Flange Mounting Type | : | 2-Bolt |
| Locking Device | : | Eccentric Collar |
| Overall Height | : | 3 in |
| Overall Length/Diameter | : | 4-7/16 in |
| Series | : | SALF |
| Type | : | Relubricatable Standard Duty |
- Round bolt holes
- Narrow inner race bearing
- Cast iron housing

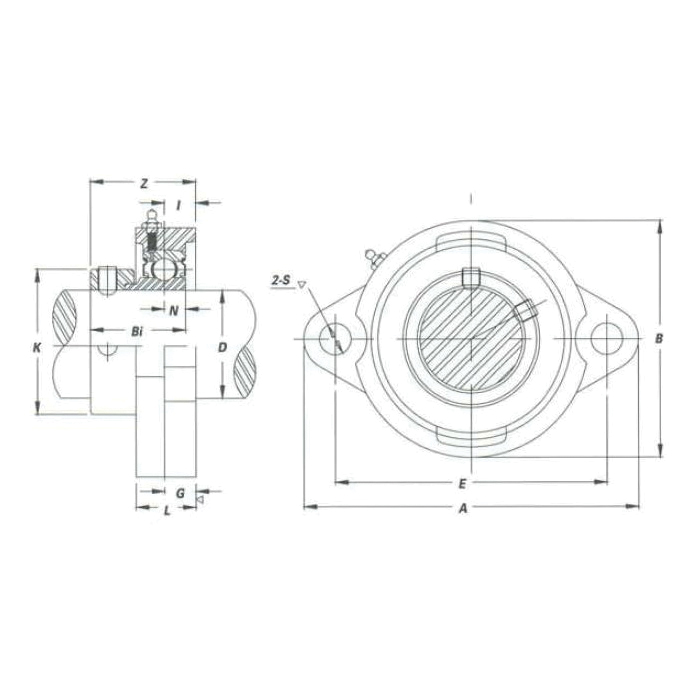

Full Engineering Drawing
