IPTCI Bearings NANF 213 40 IPTNANF213-40

NANF Series Standard Duty 4-Bolt Flange ball bearing unit features a cast iron housing and a ball bearing insert with flinger seals and Eccentric Collar lock. The housing is made of cast iron for rigidity and vibration dampening, and has a solid base for mounting stability. The double-sealed, deep-groove ball bearing insert is made of through-hardened chromium steel and is appropriate for applications with moderate radial loads and light thrust or combination loads. It has a wide inner ring on both sides for increased shaft support and reduced inner-ring tilt for smooth operation. ~~ The insert bearing has a sphered outer surface that allows it to self-align within the housing & compensate for misalignments. It also has an anti-rotation pin in the outer surface that prevents the bearings from spinning within the housing and ensures smooth performance. Steel-reinforced molded rubber lip seals with flingers on both sides of the bearing retain the high quality multi-purpose lubricant and deflect contaminants away from the seals. ~~ The bearing locks onto the shaft utilizing its included eccentric locking collar. Eccentric Collar locking units are suitable for low to moderate speed applications where the shaft rotates in one direction. The unit is equipped with a grease fitting on the housing’s outer surface for reapplying lubricant, and the insert bearing has a groove and oil hole in the outer ring to efficiently channel grease into the bearing during re-lubrication. ~~ Ball Bearing Pillow Block units are suitable for use in industrial and commercial applications including industrial machinery, conveyors, fans/blowers, agricultural equipment, construction machinery, exercise equipment, and food processing equipment, among many others

IPTCI Bearings Flange Block Bearing, Standard Duty, Series: NANF, 2-1/2 in Bore Dia, 5-7/8 in L Bolt Center-to-Center, 4-Bolt Flange Mounting, 7-3/8 in Overall Length/Diameter, 7-3/8 in Overall Height, Eccentric Collar Locking Device, 12400 lbf Dynamic Load

• Wide inner race bearing
• Cast iron housing

• Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/PTI_NANF2018_Specification_Sheet.pdf

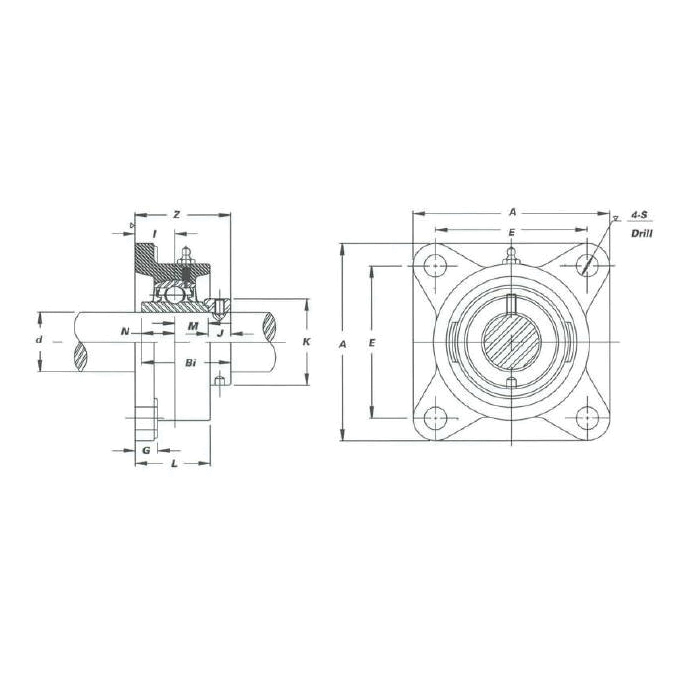

• Full Engineering Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/PTI_NANF21340_Full_Engineering_Drawing.pdf
• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/PTI_SARFB20412G_Catalog.pdf
• Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/PTI_SARFB20412G_Manual.pdf
• VIDEO LINK https://youtu.be/pWhSAr3Ii1A
