INA W1-1/2 INAAKL.W1 1/2
  1. pin-int

INA W1-1/2 INAAKL.W1 1/2

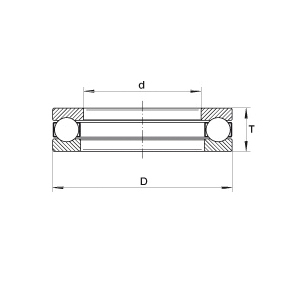

INA W1-1/2 Axial Deep Groove Ball Bearing, 1-1/2 in Dia Bore, 2.344 in OD, 0.719 in W, 4800 lb Dynamic/9800 lb Static Load

  • Manufacturer: Schaeffler Group
  • Brand Name: INA
  • Part Number: INAAKL.W1 1/2
  • MPN: W1-1/2
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

INA Axial Deep Groove Ball Bearing, Series: W Series, 1-1/2 in Bore Dia, 2.344 in Outside Dia, 0.719 in Width, Separable Face, Single Thrust Direction, 4800 lb Dynamic/9800 lb Static, Steel Bearing, 4100 rpm Maximum

Bearing Material      :      Steel
Bore Diameter      :      1-1/2 in
Face Type      :      Separable
Load Capacity      :      4800 lb Dynamic/9800 lb Static
Maximum Speed      :      4100 rpm
Outside Diameter      :      2.344 in
Series      :      W Series
Thrust Direction      :      Single
Width      :      0.719 in
  • Medium cross section
  • Grooved race
  • Separable axial contact
  • Speed limit shown is for oil lubrication
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/INA_W1_1_2_Specification_Sheet.pdf
