INA TC1427/0-5-HLA INATC1427
  1. pin-int

INA TC1427/0-5-HLA INATC1427

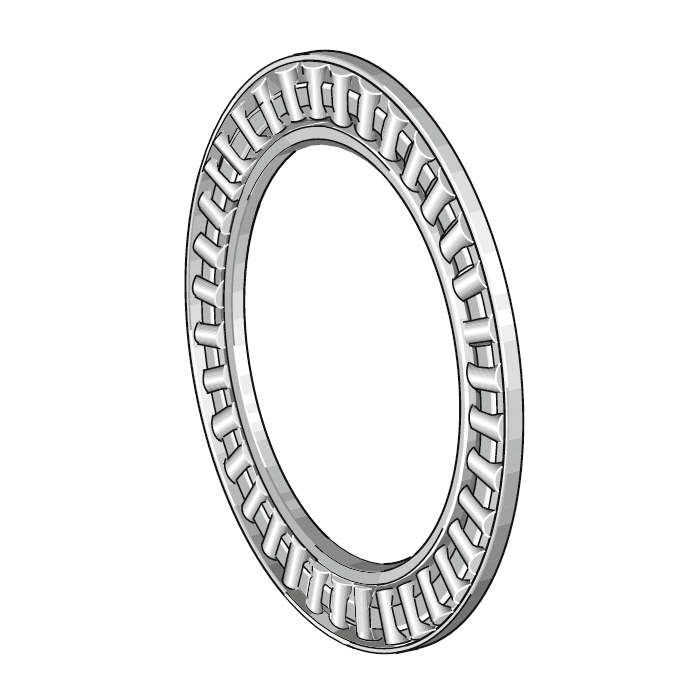

INA TC1427/0-5-HLA Single Direction Axial Needle Roller and Cage Assembly, 7/8 in Dia Bore, 1.688 in OD, 0.078 in W, Steel

  • Manufacturer: Schaeffler Group
  • Brand Name: INA
  • Part Number: INATC1427
  • MPN: TC1427/0-5-HLA
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Axial needle roller bearings are construction units consisting of axial needle roller and cage assembles and thrust bearing washers with centering spigots. They can be combined with drawn cup needle roller bearings with open ends, drawn cup needle roller bearings with closed ends and needle roller bearings. The running surface for the needle roller and cage assembly must be hardened and ground.

INA Axial Needle Roller and Cage Assembly, Single Direction, Series: TC Series, 7/8 in Bore, 1.688 in OD, 0.078 in Width, 4400 lb Dynamic/18600 lb Static Load, Steel, 8900 rpm Maximum

Bore Diameter      :      7/8 in
Load Capacity      :      4400 lb Dynamic/18600 lb Static
Material      :      Steel
Maximum Speed      :      8900 rpm
Outside Diameter      :      1.688 in
Series      :      TC Series
Type      :      Single Direction
Width      :      0.078 in
  • Suitable for combination with axial bearing washers TWA
  • 0 to 5 micron needle sort
