INA SCE59 INASCE59
  1. pin-int

INA SCE59 INASCE59

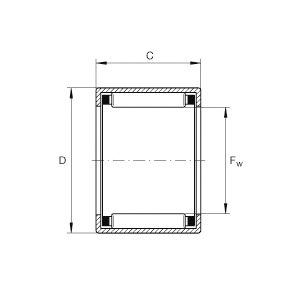

INA SCE59 SCE Series Drawn Cup Needle Roller Bearing With Open End, 5/16 in Dia Bore, 1/2 in OD, 1 Row, 0.563 in W, 1340 lb Dynamic/1480 lb Static Load

  • Manufacturer: Schaeffler Group
  • Brand Name: INA
  • Part Number: INASCE59
  • MPN: SCE59
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Pricing and Availability

INA Drawn Cup Needle Roller Bearing, Series: SCE Series, 5/16 in Bore Dia, 1/2 in Outside Dia, 1 Row, 0.563 in W, Open Closure, 1340 lb Dynamic/1480 lb Static, Steel Cage, 29000 rpm Maximum

Bore Diameter      :      5/16 in
Cage Material      :      Steel
Closure Type      :      Open
Load Capacity      :      1340 lb Dynamic/1480 lb Static
Maximum Speed      :      29000 rpm
Number of Rows      :      1
Outside Diameter      :      1/2 in
Series      :      SCE Series
Width      :      0.563 in
  • Deep drawn shell design for maximum capacity in the minimum radial space
  • Cage guided needle rollers for low friction, whole roller loading and high speeds
  • Open for through shaft locations to improve sealing
  • Easily mounted without snap rings or shoulders
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/INA_DKLFA2590_2RS_Catalog.pdf
