INA SCE1211-P INASCE1211P
  1. pin-int

INA SCE1211-P INASCE1211P

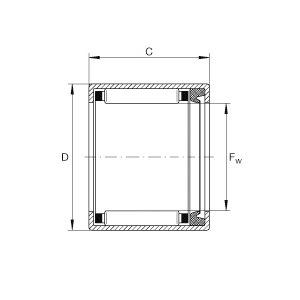

INA SCE1211-P SCE..-P Drawn Cup Needle Roller Bearing With Open End, 3/4 in Dia Bore, 1 in OD, 1 Row, 0.687 in W, 2880 lb Dynamic/3930 lb Static Load

  • Manufacturer: Schaeffler Group
  • Brand Name: INA
  • Part Number: INASCE1211P
  • MPN: SCE1211-P
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

INA Drawn Cup Needle Roller Bearing, Series: SCE..-P, 3/4 in Bore Dia, 1 in Outside Dia, 1 Row, 0.687 in W, Single Sealed Closure, 2880 lb Dynamic/3930 lb Static, Steel Cage, 13100 rpm Maximum

Bore Diameter      :      3/4 in
Cage Material      :      Steel
Closure Type      :      Single Sealed
Load Capacity      :      2880 lb Dynamic/3930 lb Static
Maximum Speed      :      13100 rpm
Number of Rows      :      1
Outside Diameter      :      1 in
Series      :      SCE..-P
Width      :      0.687 in
  • Lip seal on one side
  • Deep drawn shell design for maximum capacity in the minimum radial space
  • Cage guided needle rollers for low friction, whole roller loading and high speeds
  • Open for through shaft locations to improve sealing
  • Easily mounted without snap rings or shoulders
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/INA_SCE1211_P_Specification_Sheet.pdf
