INA RNA6904-XL INARNA6904
  1. pin-int

INA RNA6904-XL INARNA6904

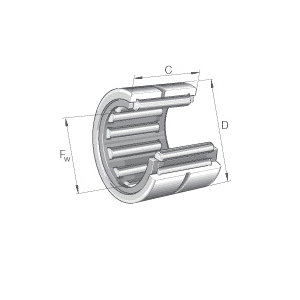

INA RNA6904-XL Precision Needle Roller Bearing, 25 mm Dia Bore, 37 mm OD, 30 mm W, 40500 N Dynamic/51000 N Static/9100 N Fatigue Load

  • Manufacturer: Schaeffler Group
  • Brand Name: INA
  • Part Number: INARNA6904
  • Alt Part Number: RNA6904
  • MPN: RNA6904-XL
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

INA Precision Needle Roller Bearing, Series: RNA69, 25 mm Bore Dia, 37 mm Outside Dia, 30 mm W, Open Closure, 40500 N Dynamic/51000 N Static/9100 N Fatigue, Steel Cage, 16900 rpm Maximum, -20 to 120 deg C

Bore Diameter      :      25 mm
Cage Material      :      Steel
Closure Type      :      Open
Load Capacity      :      40500 N Dynamic/51000 N Static/9100 N Fatigue
Maximum Speed      :      16900 rpm
Outside Diameter      :      37 mm
Series      :      RNA69
Temperature Rating      :      -20 to 120 deg C
Width      :      30 mm
  • Without inner ring
  • Through hardened machined and ground raceways with cage and roller complements
  • Retainer guides needles providing full length roller contact for maximum capacity, low friction and long life
  • Design series exist to match ISO, DIN, popular metric and inch dimension series
  • Location hole and groove in outer ring
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/INA_RNA6904_L_Specification_Sheet.pdf
