INA RNA4901-XL INARNA4901
  1. pin-int

INA RNA4901-XL INARNA4901

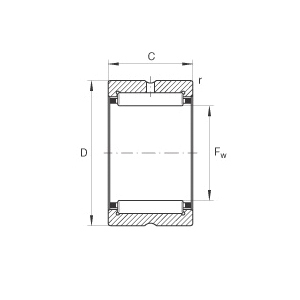

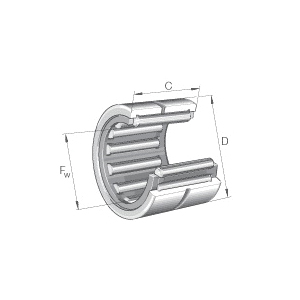

INA RNA4901-XL Precision Needle Roller Bearing, 16 mm Dia Bore, 24 mm OD, 13 mm W, 10600 N Dynamic/10900 N Static/1940 N Fatigue Load

  • Manufacturer: Schaeffler Group
  • Brand Name: INA
  • Part Number: INARNA4901
  • Alt Part Number: RNA4901
  • MPN: RNA4901-XL
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

INA Precision Needle Roller Bearing, Series: RNA49, 16 mm Bore Dia, 24 mm Outside Dia, 13 mm W, Open Closure, 10600 N Dynamic/10900 N Static/1940 N Fatigue, Steel Cage, 23200 rpm Maximum, -20 to 120 deg C

Bore Diameter      :      16 mm
Cage Material      :      Steel
Closure Type      :      Open
Load Capacity      :      10600 N Dynamic/10900 N Static/1940 N Fatigue
Maximum Speed      :      23200 rpm
Outside Diameter      :      24 mm
Series      :      RNA49
Temperature Rating      :      -20 to 120 deg C
Width      :      13 mm
  • Without inner ring
  • Through hardened machined and ground raceways with cage and roller complements
  • Retainer guides needles providing full length roller contact for maximum capacity, low friction and long life
  • Design series exist to match ISO, DIN, popular metric and inch dimension series
  • Location hole and groove in outer ring
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/INA_DKLFA2590_2RS_Catalog.pdf
