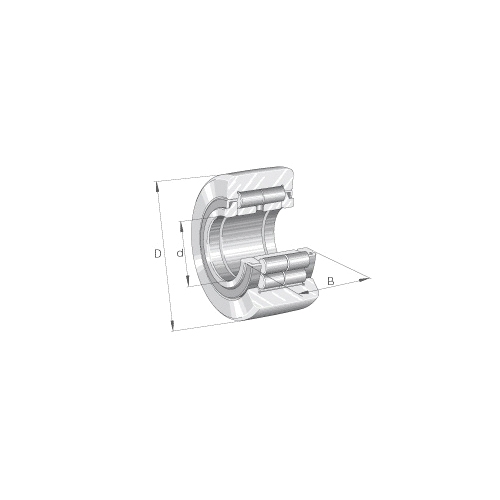

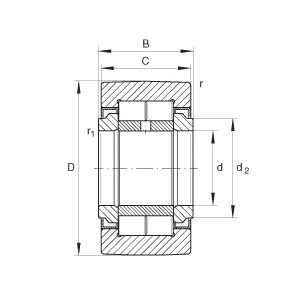

INA NUTR15 INANUTR15
INA NUTR15 Yoke Track Roller With Axial Guidance, 15 mm Dia Bore, 35 mm Dia x 18 mm W Roller, 15300 N Dynamic/18700 N Static/2430 N Fatigue Load, Steel Roller
- Manufacturer: Schaeffler Group
- Brand Name: INA
- Part Number: INANUTR15
- MPN: NUTR15
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
INA Track Roller, Yoke, Series: NUTR, 15 mm Bore, 35 mm Roller Diameter, 18 mm Roller Width, 19 mm Overall Width, 15300 N Dynamic/18700 N Static/2430 N Fatigue Load, Double Seal Closure, 6500 rpm Maximum, -30 to 140 deg C, Steel Roller, Uncoated
| Bore Diameter | : | 15 mm |
| Closure Type | : | Double Seal |
| Finish | : | Uncoated |
| Load Capacity | : | 15300 N Dynamic/18700 N Static/2430 N Fatigue |
| Maximum Speed | : | 6500 rpm |
| Overall Width | : | 19 mm |
| Roller Diameter | : | 35 mm |
| Roller Material | : | Steel |
| Roller Width | : | 18 mm |
| Series | : | NUTR |
| Temperature Rating | : | -30 to 140 deg C |
| Type | : | Yoke |
- Full complement cylindrical roller set
- Labyrinth seals on both sides
Specification Sheet
