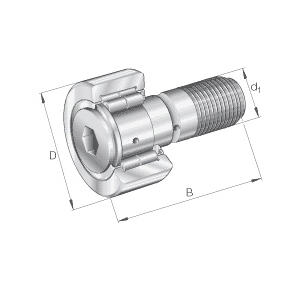

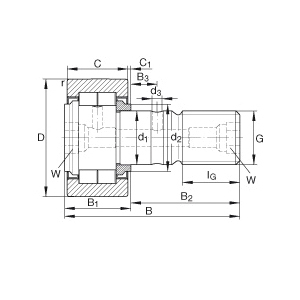

INA Track Roller, Stud, Series: NUKR, 80 mm Roller Dia, 35 mm Roller Width, 30 mm Stud Dia, 63 mm Stud Length, M30 x 1.5, 32 mm Thread Length, 69000 N Dynamic/104000 N Static/14100 N Fatigue, 1800 rpm Maximum, -30 to 140 deg C, Standard Stud, Sealed Closure, Hex, Uncoated
| Closure Type | : | Sealed |
| Finish | : | Uncoated |
| Head Type | : | Hex |
| Load Capacity | : | 69000 N Dynamic/104000 N Static/14100 N Fatigue |
| Maximum Speed | : | 1800 rpm |
| Roller Diameter | : | 80 mm |
| Roller Width | : | 35 mm |
| Series | : | NUKR |
| Stud Diameter | : | 30 mm |
| Stud Length | : | 63 mm |
| Stud Type | : | Standard |
| Temperature Rating | : | -30 to 140 deg C |
| Thread Length | : | 32 mm |
| Thread Size | : | M30 x 1.5 |
| Type | : | Stud |
- Full complement cylindrical roller set
- Labyrinth seals on both sides
Specification Sheet
